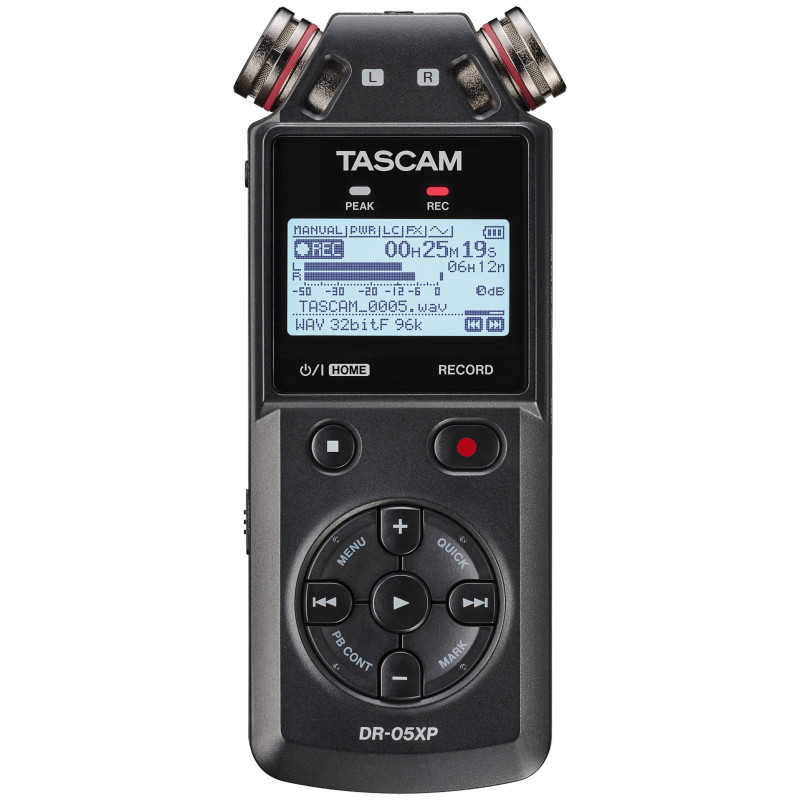

Tascam Stereo Handheld Audio Recorder and USB Audio Interface

The DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more.
With 32-bit float recording mode, you'll never need to worry about setting audio levels, and with the integrated stereo condenser microphones you are always ready to go.
With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Built-in Condenser Microphones
The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels up to 125 dB SPL, reducing the risk of mic distortion even in loud environments.

Simplicity in Your Palm
With the DR-05XP, the complexities of audio recording are a thing of the past.
Easily access every feature from the palm of your hand.
Plus, the backlit LCD screen means no squinting, just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio
The DR-05XP isn't only a powerful portable recorder ? it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians
The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On location
With its compact size, the DR-05XP can travel anywhere for exceptional field recording.
Choose from three different low cut filter options for getting rid of unwanted noises.
As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

General
Recording media: microSD/microSDHC/microSDXC card (up to 512 GB)
Recording/playback format:
WAV: Sampling frequency: 44.1/48/96 kHz | Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3: Sampling frequency: 44.1/48 kHz | Bit rate: 32/64/96/128/192/256/320 kbit/s
Number of channels: Input channels: 2 (stereo) | Recording tracks: 2 (stereo)

Analogue audio inputs and outputs
Microphone/External input (can provide plug-in power): 3.5-mm stereo mini jack
Input impedance: greater than or equal to 18 kO (plug-in power off) | greater than or equal to 2 kO (plug-in power on)
Nominal input level: -20 dBV
Maximum input level: -4 dBV
Headpones/Line output: 3.5-mm stereo mini jack
Output impedance: 12O
Nominal output level: -14 dBV (10 kO load)
Maximum output level: +2 dBV (10 kO load)
Maximum output power: 20 mW + 20 mW (32O load)
Working impedance: 16-250O
Built-in loudspeaker: 0.3 W (mono)

Control inputs and outputs
USB:Type-C connector
Format: USB 2.0 HIGH SPEED mass storage class | USB 1.1 FULL SPEED audio class
USB Audio:
Sampling frequency: 44.1/48 kHz
Quantization bit depth: 24 bit
Number of audio inputs: 2 channels
Number of audio outputs: 2 channels

Audio performance
Frequency response:
20 Hz - 20 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA)
20 Hz - 22 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 48 kHz, JEITA)
20 Hz - 40 kHz, +0/-1.5 dB
(MIC/EXT IN to LINE OUT, 96 kHz, JEITA)
Total harmonic distortion ratio (THD+N): less than or equal to 0.01 % (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)

Power supply and other specifications
Power supply:
- 2 AA batteries (alkaline or NiMH, sold separately)
- USB bus power from a computer
- Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A)
Power consumption: 1.7 W / 5 V, 0.5 A (maximum)
Permissible operating temperature range: 0 - 40°C
Dimensions (W × H × D): 61 mm × 142 mm × 27 mm
Weight: 174/126 g (with/without batteries)
