Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit - 10-2279

Transmit and receive lossless HD video from up to 5000' line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek.

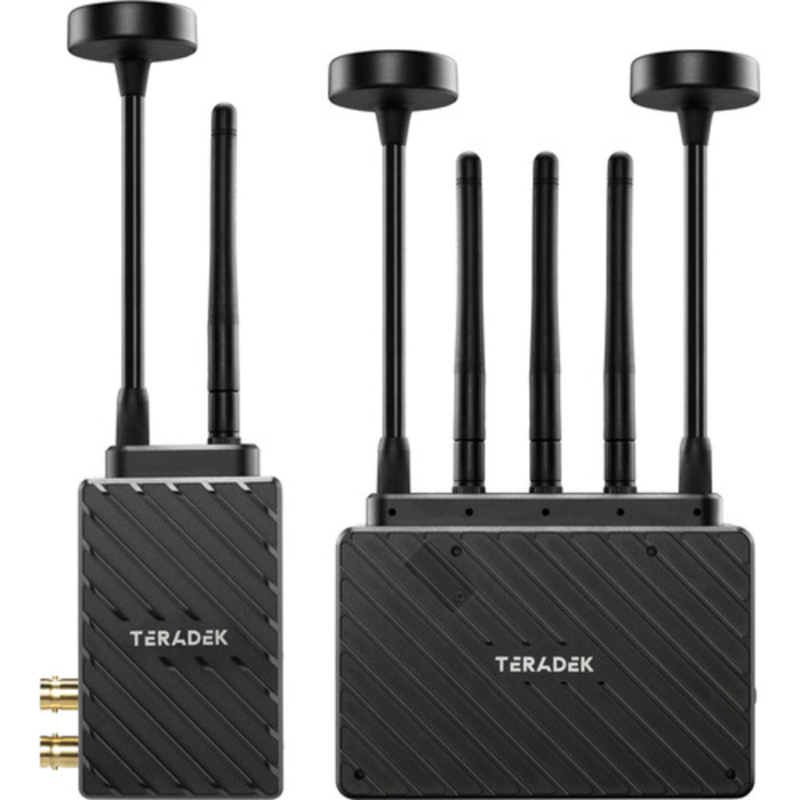

The kit includes a Bolt 6 wireless transmitter and Bolt 6 receiver featuring bright OLED displays and able to wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available.
The transmitter inputs up to 4K video over HDMI or up to 1080p30 video via 3G-SDI, and the receiver outputs up to 4K30 video via HDMI and up to 1080p60 3G-SDI.

The transmitter sends up to 4K30 video to the Bolt 4K LT MAX receiver, and it can also simultaneously transmit to up to six receivers.
The system features improved metadata, range, and compatibility over its predecessors, and it supports HDMI/SDI cross conversion.
Though the transmitter can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. A carry case is included to store and transport the kit.

- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
- Transmits to an unlimited number of receivers in broadcast mode
- SDI Eye Pattern Tool to check SDI cable integrity
- Improved "long-range" mode
- Input up to 4K via HDMI video, input/output 1080p via 3G-SDI, and transmit up to 4K30 video
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- HDR workflow support with HDR-10, PQ, and HLG standards
- Smaller and lighter chassis design than other Bolt transmitters
- Transmit metadata, timecode, and stop/start triggers over a wireless connection
- Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Inputs/Outputs
_________________________
Antenna I/O:
- Transmitter: 2x RP-SMA Female
- Receiver: 5x RP-SMA Female
Video I/O:
- Transmitter: 1x HDMI 1.4b Input
- Transmitter: 1x BNC (3G-SDI) Input
- Transmitter: 1x BNC (3G-SDI) Loop Output
- Receiver: 1x HDMI 1.4b Output
- Receiver: 1x BNC (3G-SDI) Output
Embedded Audio: HDMI: 2-Channel | SDI: 2-Channel
Audio I/O: No
Power I/O: Transmitter/Receiver: 1x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1x Micro-USB Input
Encryption: Yes, 256-Bit AES

Wireless
_________________________
Wireless Range: 5000' / 1524 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz | US: 5.19 to 5.23 GHz | US: 5.75 to 5.79 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Bluetooth: Yes
Mobile App Compatible: Yes: Android & iOS | App Name: Bolt App
Cellular Support: No

Power
_________________________
Input Power: 6 to 28 VDC
Power Consumption:
- Transmitter: 9 W
- Receiver: 11 W

Mounting
_________________________
Mounting:
- 1x 1/4"-20 Female ()
- 1x 3/8"-16 Female ()

General
_________________________
Environmental Resistance: No
Operating Conditions: 32 to 72°F / 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions:
- Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
- Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight:
- Transmitter: 7.27 oz / 206.00 g
- Receiver: 10.30 oz / 292.00 g
