RED continues to expand its line of digital cinema cameras with the KOMODO-X Z Mount featuring a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses. It shares the global shutter 6K S35 sensor, powerful IP workflow, and advanced interfaces of the RF-mount KOMODO-X.

19.9MP Super 35 Global Shutter CMOS
Reinforced, Locking Nikon Z Lens Mount
NIKKOR Z 28-135mm f/4 PZ Lens
Outrigger Handle with Record/Stop Button
49Wh REDVOLT NANO-V Battery
Adjustable AF, Smooth Iris Control
Up to 6K80p & 4K120p Video
12G-SDI, USB-C, 5-Pin Audio Ports
6K Streaming via RED Connect License
Wireless Control, File Offload via Wi-Fi

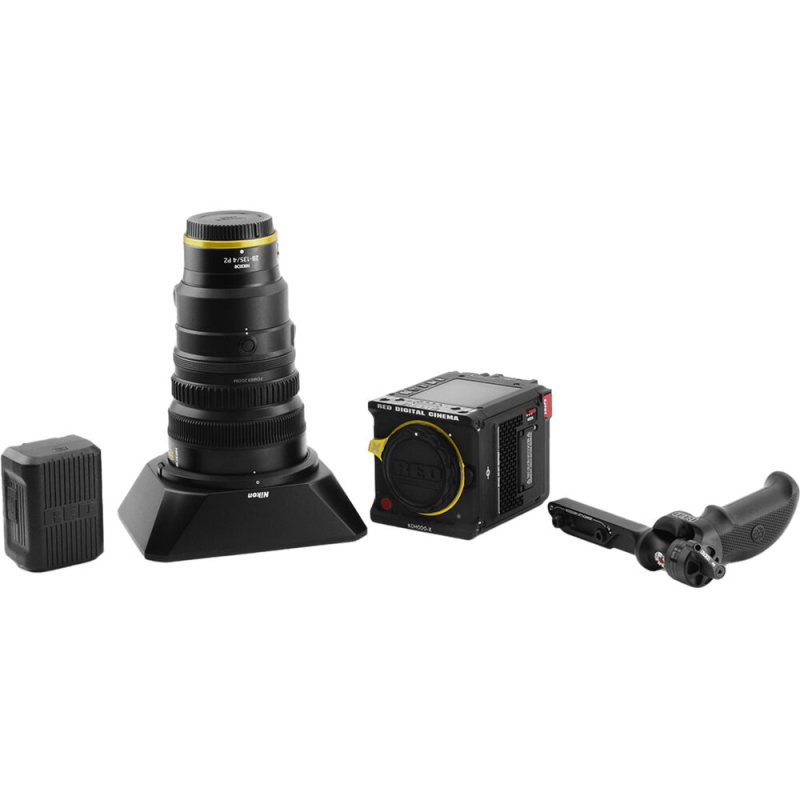

in the box :

1x KOMODO-X Z Mount Camera
1x NIKKOR Z 28-135mm f/4 PZ
1x KOMODO Outrigger Handle
1x REDVOLT NANO-V
KOMODO-X Information Card (incl. Registration and support info)
1 Year Standard Warranty


6K Super 35 Global Shutter Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X Z Mount sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.

Compact KOMODO Form
The KOMODO-X Z Mount camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X Z Mount has a built-in plate that enables the direct use of Micro V-mount batteries and is compatible with the PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use. It also incorporates a full-size, 4-pin 11-17 VDC power input.

Integrated LCD
Users can preview their images and apply simplified controls via the integrated 2.9" LCD, an especially handy feature in tight setups. Pair the KOMODO-X Z Mount with the daylight-viewable, high-resolution DSMC3 7" Touch LCD for more precise monitoring and full control in a cable-free, decluttered form.


Nikon Z Lens Mount

The KOMODO-X Z Mount has a reinforced, locking Nikon Z lens mount with advanced iris, auto-focus, and lens response capabilities.
Pair the camera with a Nikon FTZ II mount adapter to use older Nikon F-mount lenses.
It offers toolless switching to additional RED mounts and compatibility with third-party adapters for use with a wide range of lenses.
Use the KOMODO-X Z Mount with the RED Z to PL adapter for compatibility with upcoming /i PL lenses.

Live Streaming and Expanded In/Out
The KOMODO-X Z Mount's expanded interface includes:

12G-SDI video output up to 4K60p.
A USB-C port with Ethernet offload capabilities.
Built-in Wi-Fi for IP live streaming for web applications and in-app monitoring.


Advanced Connectivity

With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X Z Mount shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
Multicamera and LED volume shooters will appreciate the KOMODO-X Z Mount's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.

Cfexpress Type B

The KOMODO-X Z Mount has a single media slot for use with a high-capacity, fast Cfexpress type B card.
Record up to 17 hours using a 4TB Cfexpress type B card.
Offload data up to 3x faster than Cfast media.


Audio Interface
Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.

SENSOR TYPE KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS 6144 x 3240
SENSOR SIZE 27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE 16.5+ stops

MOUNT TYPE
Integrated locking Nikon Z mount with electronic communication
Supports /i PL lenses with RED Z to PL Adapters
Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount
MAX DATA RATES Up to 560 MB/s using RED branded or other qualified CFexpress media cards[1]

REDCODE® RAW MAX FRAME RATES 80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700))
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)

PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

BEST AVAILABLE REDCODE SETTINGS
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps

REDCODE® RAW
ACQUISITION FORMATS 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)

APPLE PRORES Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps

CONSTRUCTION Aluminum Alloy
DIMENSIONS 129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.)
WEIGHT 2.62lbs (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50°C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing

COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs

AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

AUTOFOCUS Phase Detect and Contrast

MONITOR OPTIONS
Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

ADDITIONAL
I/O Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT

IP CONNECTED
Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading
MJPEG 1080p live stream accessible through Wi-Fi and USB-C.
PTP for frame level synchronization
R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter

RED CONTROL & RED CONTROL PRO
Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C
