Compact 4K 10bit 60p camcorder with IP connectivity.

Wide-Angle 25mm*1 Lens and 24x Optical Zoom
Supports SRT*2, NDI®* HX2*2, RTMP
High-Quality Recording with Versatile Modes
Compact, lightweight with OLED viewfinder and handle
Double SD Card Slot Meets Recording Needs
Sensor Type : 1/2,5"
Zoom: 24x
Video I/O: 3G-SDI OUT HDMI OUT

The AG-CX20 and AG-CX18 models camcorders feature state-of-the-art optical technology, in addition to a lightweight and compact chassis design that delivers increased mobility, and high-quality video production.


Wide angle zoom lens for precise shooting

The camcorders offer superior optical performance thanks to a powerful integrated 25mm[1] wide angle to 600mm[2] telephoto zoom lens, with 24x optical zoom. They feature a 4-Drive Lens System that operates each lens group independently, in addition to two manual focus rings.

All four cameras feature both Optical and Electric Image Stabilisation to detect and correct any unwanted camera shake through five axes, including rotational blurring. This is especially useful when shooting subjects from very high and low angles. All models provide superior focusing speed, stability, and tracking performance when shooting in both 4K and FHD, thanks to the Face Detection AF/AE feature that provides precise focusing and exposure for subjects.

IP-based video for seamless streaming:
The high-end CX20 model will support full-HD live streaming through the next-generation, IP-based SRT protocol[1], with the CX20 and CX18 delivering simultaneous SDI/HDMI outputs. Panasonic's CX20 also supports NDI®* HX2 IP connectivity for high-quality, low-latency live streaming in a network environment, without the need for external converters. Both the CX20 and CX18 support Real-Time Messaging Protocol (RTMP)[2], allowing content to be streamed live directly to social media platforms and video sharing sites, such as YouTube.

Listening to the needs of the industry:
Panasonic's intimate knowledge of what directors and cinematographers require from high-performance camcorders when shooting on location have been reflected within the improvements made to all four models, further increasing usability and functionality.

Compact design for superior mobility:

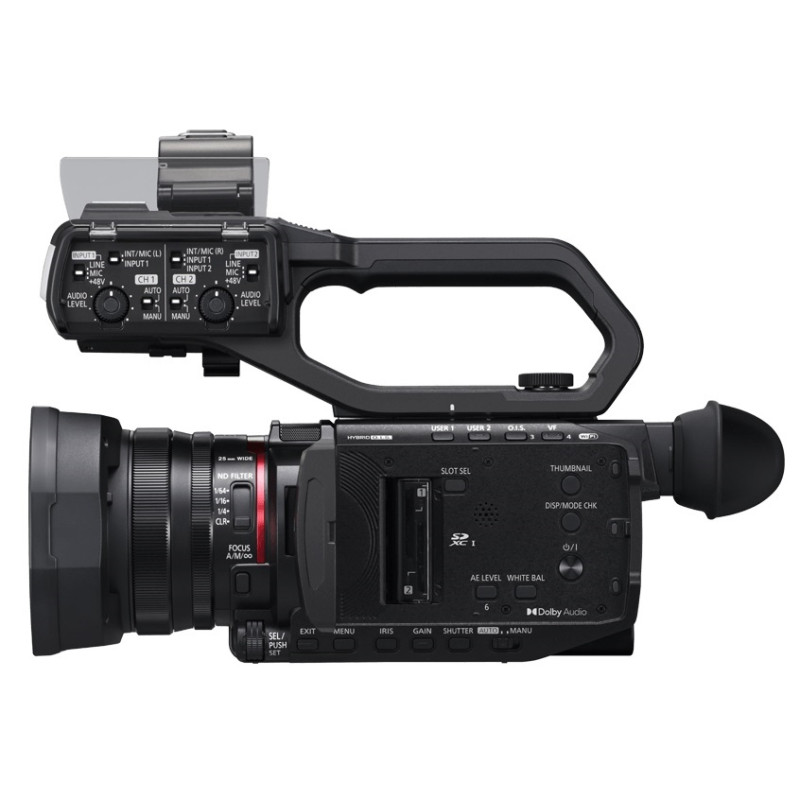

The unique design of all four models enables heat to be dispersed from the front panel thanks to a slimline fan. This increases reliability and enables the body to be as small as possible. The CX20 and CX18 include Panasonic's VW-HU1 handle unit, featuring a two-channel XLR audio input and control, and bright, adjustable LED light for shooting in low light conditions. Users can also easily operate lens zoom from the handle unit.[1]

All four camcorders support multiple bit rates and formats for a variety of requirements. When configured for 10 bit recording with an HDMI output, all models deliver 4K 60p 4:2:2 output with an external recorder. All camcorders support the MOV, MP4 and AVCHD formats, whilst the CX20 supports the P2 MXF workflow.

Power DC 7.28 V (when the battery is used)
DC 9.0 V (when the AC adaptor is used)
Power Consumption 19.8 W (recording),
15.5 W (charging)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 80 % (no condensation)
Weight*1 Approx. 0.85kg (Approx. 1.88 lbs.) (main unit only, excluding handle unit, lens hood, battery and eye cup)
Approx. 1.5kg (Approx. 3.31 lbs.) (including handle unit, lens hood, battery and eye cup)
Dimensions*1 129 mm (W) x 159 mm (H) x 267 mm (D) (5.08 in. x 6.26 in. x 10.1 in.)
(including handle unit, lens hood, battery and eye cup. excluding microphone holder)
Camera Unit
Pickup Device 1/2.5-type MOS solid state image sensor
Effective Pixels approx. 8,290,000 pixels
Lens Optical image stabilizer lens, motorized 24x zoom
F value: F1.8 to F4.0
Focal length: f=4.12 mm to 98.9 mmm, 35 mm equivalent: 25.0 mm to 600 mm
Filter Diameter 62 mm
Optical Filter ND Filter: Clear, 1/4, 1/16, 1/64
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.) Approx. 10 cm (W), 1.2 m (T) from the front lens
Gain Setting 0 dB to 18 dB (adjustable in 1 dB steps)
(when assigning [S. GAIN] to the USER button)
Color Temperature Setting ATW, ATW LOCK, A ch, B ch,
preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed
When [SYSTEM MODE] = 59.94 Hz
59.94i/59.94p mode 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
29.97p mode 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
23.98p mode 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec.,
1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

When [SYSTEM MODE] = 50.00 Hz
50i/50p mode 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
25p mode 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec.,1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

Shutter Speed (Slow Shutter) When [SYSTEM MODE] = 59.94 Hz
59.94i/59.94p mode 1/8 sec., 1/15 sec., 1/30 sec.
29.97p mode 1/8 sec., 1/15 sec.
23.98p mode 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode 1/6 sec., 1/12 sec., 1/25 sec.
25p mode 1/6 sec., 1/12 sec.

Super Slow Recording When [SYSTEM MODE] = 59.94 Hz
1920 x 1080 (FHD): shooting frame rate 120 fps
When [SYSTEM MODE] = 50.00 Hz
1920 x 1080 (FHD): shooting frame rate 100 fps

Minimum illuminance of subject 1.5 lx (F1.8, [SUPER GAIN+] is enabled, when shutter speed is 1/30 sec.)
i.Zoom x48 (FHD), x32 (UHD)
Digital Zoom x2/ x5/ x10
LED light
(when using the hundle unit) Illuminance: approx.70 lx (1.0m/approx.3.3 feet)
Illumination angle: approx. 30°
Color temperature: approx.4600K
Lens Hood Hood with lens cover
Memory Card Recorder
Recording Media SDHC memory card (4 GB to 32 GB),
SDXC memory card (over 32 GB to 512 GB),
microP2 card (A series, B series)*2
Recording Slot 2 slots
Recording Pixels 3840 x 2160: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p
1920 x 1080: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p, 59.94i, 50.00i
1280 x 720: 59.94p, 50.00p
System Frequency 59.94 Hz/50.00 Hz
Recording File Format P2, MOV, MP4, AVCHD
Recording Format Please see the "Recording Format" table.
Recording Time Please see the "Recording Time" table.
2 Slot Functions Relay Rec, Simultaneous Rec, Background Rec
Still Image Recording JPEG (DCF/Exif2.2)

Quantization
P2 4:2:2 10bit (AVC-I100/AVC-G50/AVC-G25), 4:2:0 10bit (AVC-I50), 4:2:0 8bit (AVC-G12/AVC-G6(proxy))
MOV 4:2:2 10 bit/4:2:0 10 bit (HEVC)/4:2:0 8 bit
MP4 4:2:0 10 bit (HEVC)/4:2:0 8 bit
AVCHD 4:2:0 8 bit
Video Compression Format P2 AVC-Intra422, AVC-LongG50, AVC-LongG25, AVC-LongG12, MPEG-4 AVC/H.264 Intra Profile
MOV H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile

Video Output
SDI OUT BNC x 1, SDI REC REMOTE supported, Timecode output, 0.8 V [p-p], 75 O, HD-SDI,
Output format (4:2:2 10 bit):
? 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 29.97Psf, 25p, 25Psf, 23.98p, 23.98PsF
? 1280 x 720: 59.94p, 50p
HDMI OUT HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
Output format (4:2:2 10 bit):
? 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
? 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
? 1280 x 720: 59.94p, 50p
? 720 x 480: 59.94p
? 720 x 576: 50p
