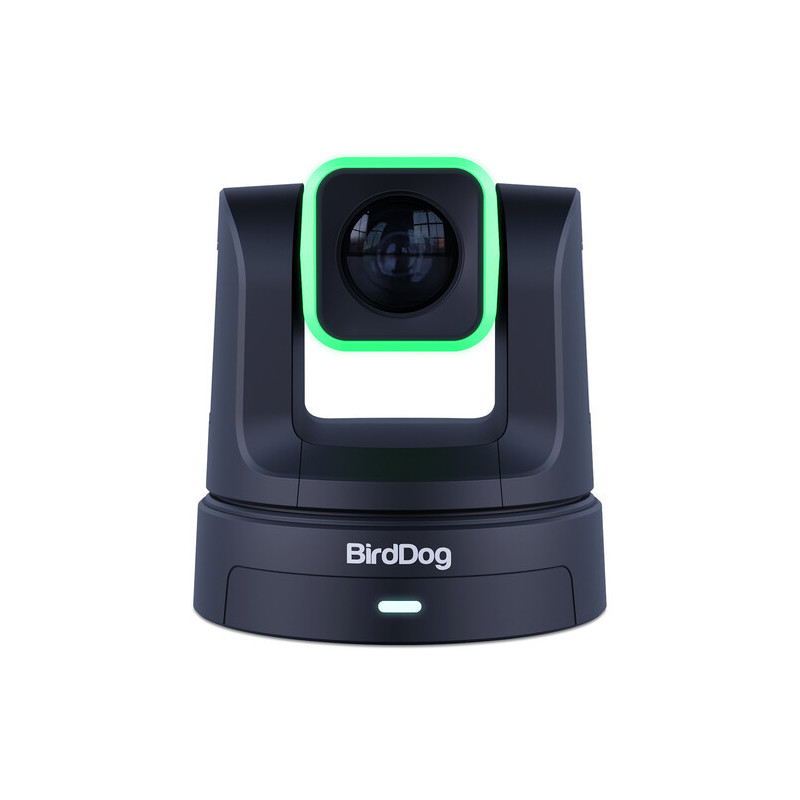

BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom, Capture up to UHD 4K60 Resolution Video, 12G-SDI, HDMI 2.0 & USB/UVC Outputs, Built-In NDI|HX3 Support (Black)

Update your production to 4K and keep your subjects in frame with AI auto framing using this black BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom.
The X5 Ultra updates the X1 with 12G-SDI and HDMI 2.0 outputs for up to UHD 4K60 capture, Gigabit Ethernet, and PoE+ support as well as two 2.983" E-Ink displays.
With a powerful 20x zoom and color matrix, the versatile X5 Ultra offers high-quality, low-light performance and support for NDI|HX3.

Integrated NDI Decoder
The camera features an NDI|HX decoder designed specifically for monitoring, return feeds, or teleprompter usage.
All the connectivity is contained into a single cable, simplifying how you interface with your equipment.

AI Tracking
Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time.
Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Connectivity Options
The X5 Ultra features 12G-SDI output, dual HDMI outputs, and support for multiple network formats, including NDI|HX3, SRT, RTMP and RTSP, and webcam connectivity over USB-C with UVC 1.1 support.

4K60 NDI|HX3 Integration
The X5 Ultra delivers superior network performance via integrated NDI|HX3.
Reduce network impact while maintaining high-quality imagery across all video resolutions.
NDI|HX2 is also supported in alternate resolutions.

Built-In Halo Tally Light
A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system.
Your cast and crew will always know where to look to keep your audience engaged and your look polished.

E-Ink Label
The dual, always-on e-ink label displays on the X5 Ultra allow easy access to controls and customizable logos to complement your brand image.
This cool feature ensures that your setup is clear and that each camera is easily identifiable, even when the power is off.

BirdUI Advanced Features
BirdUI gives you access to every function of your X5 Ultra with an intuitive interface.
As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra.
There is also a dashboard for monitoring the camera and light/dark modes to suit your production environment.

Imaging
____________________
Image Sensor: 1/2.8"-Type CMOS
Sensor Resolution: Effective: 8.46 Megapixel (3840 x 2160)
IR Cut Filter: No
Built-In ND Filter: No
Focus Control: Autofocus | Manual Focus

Exposure Control
____________________
Shutter Speed: 1/1 to 1/10000 Second
Precise Scan Rate Control: No
Signal-to-Noise Ratio: 50 dB

Lens
____________________
Focal Length: 5.4 to 104mm
Optical Zoom Ratio: 20x
Field of View:
- Horizontal: 56.6 to 3°
- Vertical: 32.5 to 1.7°
- Diagonal: 64.7 to 3.5°
Maximum Aperture: f/1.6 to 3.6

Video Capture
____________________
External Recording Modes: HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio: HDMI/LAN (RJ45)/SDI
Broadcast Output: NTSC/PAL
IP Streaming: H.264, H.265, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
1280 x 720 at 50p, 59.94p, 60p

Control
____________________
Presets: 128
Move Speed:
- Pan: 0.1 to 200°/sec
- Tilt: 0.1 to 200°/sec
Movement Range:
- Pan: 340° (-170 to 170°)
- Tilt: 120° (-30 to 90°)
Tally Light: Yes
Supported Control Protocols:
- IP
- NDI
- RS-232
- RS-422
- VISCA

Interface
____________________
Video I/O:
- 1x HDMI 2.0 Output
- 1x HDMI 1.4 Output
- 1x BNC (12G-SDI) Output
- 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
- 1x RJ45 (NDI) Input/Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O: 1x RJ45 (RS-232, RS-422, VISCA)
Built-In Speaker: No

Power
____________________
PoE Support: PoE+ 802.3at
Power I/O: 1x Barrel (12VDC up to 2 A) Input
Power Consumption: Device: 18 W

Environmental
____________________
Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 20 to 80%

General
____________________
Mounting: 1x 1/4"-20 Female for Bracket/Tripod
Dimensions (W x H x D): 7.9 x 7.3 x 6.8" / 200.9 x 185.7 x 171.9 mm
Weight: 5.09 lb / 2.31 kg (Body Only)
