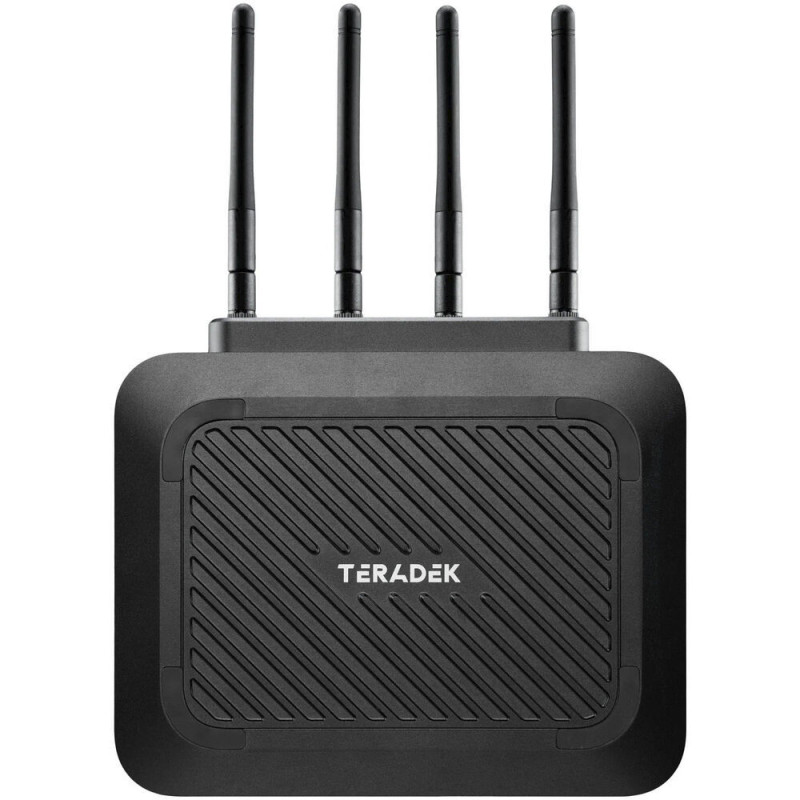

Teradek Link AX Wi-Fi Router/Access Point (No Battery Plate) , 5 Port - 10-0065

Add routing and Wi-Fi connectivity, collaboration, and monitoring to your streaming production with this Link AX Wi-Fi Router/Access Point from Teradek.
This unit features five configurable Ethernet ports and Wi-Fi 6 802.11ax connectivity to connect your IP-enabled cameras, video switchers, and streaming video devices with collaborators and cloud services.
The unit allows numerous units to connect via Wi-Fi or wireless connections for streaming and monitoring using multiple Teradek Serv 4K or Serv Micro units.
Its USB-A port allows you to utilize external modems such as the Node II for cellular data streaming options.
The Teradek VUER HDR app for iOS and Android devices provides control over the streams, and it allows up to 20 independent viewers on the system to preview feeds and control multiple cameras.
Its rugged aluminum chassis is designed for use in various environments, and it features 1/4"-20 and 3/8"-16 mounting threads.
It is powered using the included power supply or via an optional Gold mount or V-mount battery plate.

- Wi-Fi monitoring with multiple Serv devices
- 20 independent viewers using VUER HDR app on mobile devices
- Add an Internet connection to enable remote monitoring or camera-to-cloud workflows
- Simultaneous control of multiple cameras over Wi-Fi
- Durable aluminum chassis
- Powered using included power supply or via an optional Gold mount or V-mount battery plate
- 3/8"-16 and 1/4"-20 mounting threads
- Five customizable Ethernet ports
- USB-A for cellular modems such as Node II with Teradek Data

Inputs / Outputs
USB I/O: 1 x USB-A Female Input/Output
Video I/O: 5x RJ45 Input/Output

Wireless
Wireless:
Wi-Fi 6 (802.11ax)
*Built-In
Wi-Fi: Wi-Fi 6 (802.11ax)
Mobile App Compatible:
Yes, Required: Android & iOS
App Name: VUER
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

Power
Power Source: AC Adapter with Power Brick (Included)
DC Input Power: 12 VDC
Power Consumption: 30 W

Physical
Mounting:
- 1 x 3/8"-16 Thread
- 1 x 1/4"-20 Thread
Material of Construction: Aluminum
Cable Length: 6" / 15.2 cm
