Bolt 6 Monitor Module 750 Int Ant RX V Mount - 10-2199-V7I
Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video.
Bolt 6 uses Teradek's patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

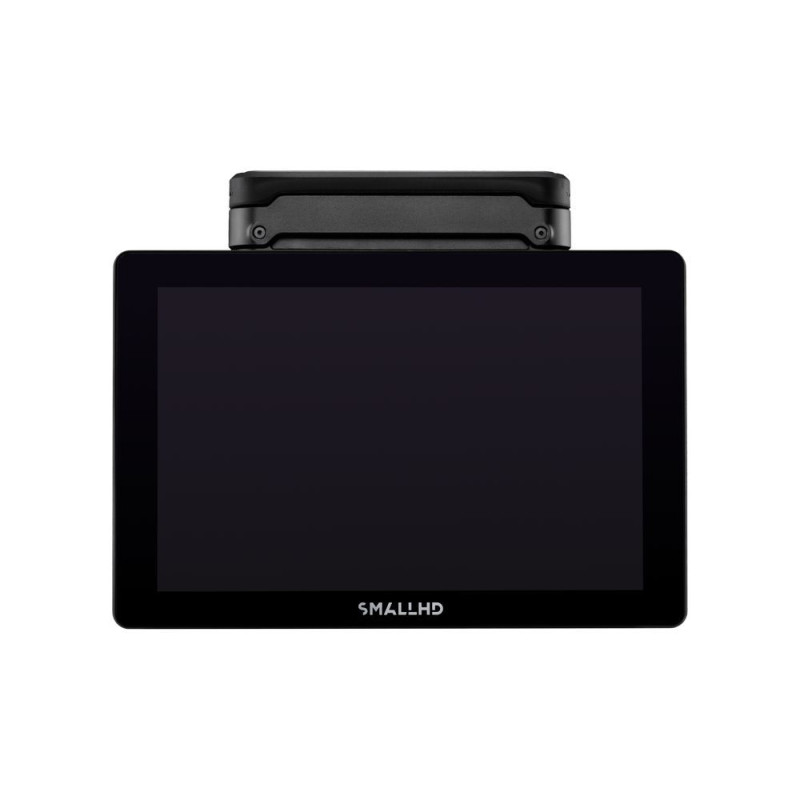

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD's Cine 7, 702 Touch, and Indie 7 Smart Monitors.
With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set.
With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.
The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 Monitor Module RX can include a permanent internal antenna to allow for reliable zero-delay transmission in a more compact and durable form factor.
Video
Video Outputs: 2 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Supported Resolutions
Supported Resolutions:
4Kp23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing
Video Compression: Visually Lossless
Color Correction: None
Audio Processing
Audio Compression: 48kHz 24-bit PCM
Outputs
Audio Output: Embedded HDMI Audio Output (2 Channel)
Interfaces
Configuration Interfaces: SmallHD Monitor UI
Mobile App: Bolt App
Usb Interface Functionality:
- SmallHD Monitor UI
- 2x 5pin Locking Connector CCU (Host)
Bluetooth: Via SmallHD Monitor
Network
Antennas: 5x Internal 2dBi antennas
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 22 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection:
- Can coexist with WiFi and 5GHz cordless phones
- Can operate up to 6 sets in same location
Interoperability Compatibility: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power
Power Input: 2-Pin Circular locking Connector 6-18 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 7 Watts
Environmental
Operating Temperature: 0-40°C
Physical
Dimensions: 122mm x 94mm x 27mm
Weight: 292g (10.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: SmallHD 7" Monitor
