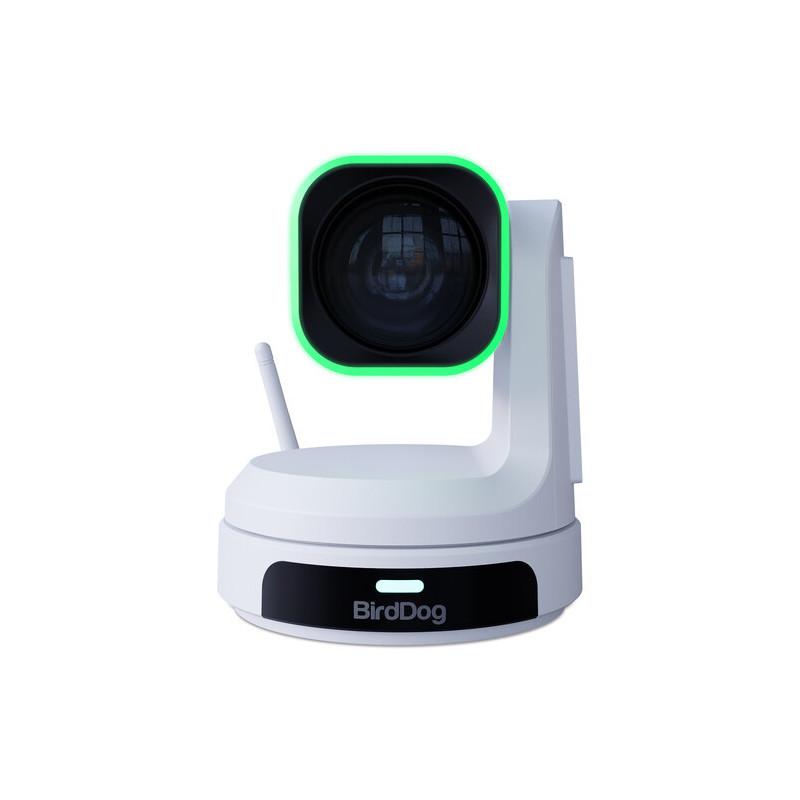

BirdDog X1 Ultra PTZ Camera with 12x Zoom & UHD 4K30 Resolution, 1/2.8"-Type CMOS, Wi-Fi 5 & NDI|HX3 Support, Built-In Halo Tally, PoE Support - White

Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this white X1 Ultra PTZ Camera with 12x Zoom from BirdDog.
Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.
Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more.
A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Integrated NDI Decoder
The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage.
All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment.

AI Tracking
Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time.
Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Wi-Fi Connectivity
No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality.
Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.

NDI|HX2 & NDI|HX3 Integration
Achieve superior network performance via NDI|HX2 and NDI|HX3 integration.
You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

Built-In Halo Tally Light
A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system.
Your cast and crew will always know where to look to keep you audience engaged and your look polished.

Imaging
Image Sensor: 1/2.8"-Type CMOS
Horizontal Resolution (TV Lines): 2160 TV Lines
Sensor Resolution: Effective: 8.29 Megapixel (3840 x 2160)
IR Cut Filter: No
Built-In ND Filter: No
Focus Control: Autofocus | Manual Focus

Exposure Control
Signal-to-Noise Ratio: 50 dB

Lens
Focal Length: 4.1 to 49.2mm
Optical Zoom Ratio: 12x
Field of View:
- Horizontal: 70.28 to 6.57°
- Vertical: 42.06 to 3.76°
- Diagonal: 78.36 to 7.5°
Maximum Aperture: f/1.8 to 2.68

Video Capture
External Recording Modes:
° HDMI / RJ45 / USB:
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps
HD (1920 x 1080p) at 25/29.97/30.00 fps
HD (1280 x 720) at 25/29.97/30.00 fps
Embedded Audio: HDMI/LAN (RJ45)/SDI
Broadcast Output: NTSC/PAL
IP Streaming:
NDI|HX2, NDI|HX3, RTMP, RTSP
3840 x 2160 at 30p

Control
Presets: 255
Move Speed:
- Pan: 0.1 to 80°/sec
- Tilt: 0.1 to 60°/sec
Movement Range:
- Pan: -175 to 175°
- Tilt: -90 to 90°
Tally Light: Yes
Supported Control Protocols:
- ONVIF Profile S
- RS-232
- RS-485

Interface
Video I/O: 1x HDMI (Unspecified Signal) Output
Other I/O:
- 1x USB-C
- 1x RJ45 (NDI)
Built-In Speaker: No

Power
PoE Support: PoE 802.3af
Power I/O: 1x RJ45 (12VDC at 2 A) Input
Power Consumption: 13 W

Environmental
Storage Temperature: 14 to -40°F / -10 to -40°C
Operating Humidity: 20 to 80%

General
Dimensions (W x H x D): 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm
Weight: 3.15 lb / 1.43 kg (Body Only)
