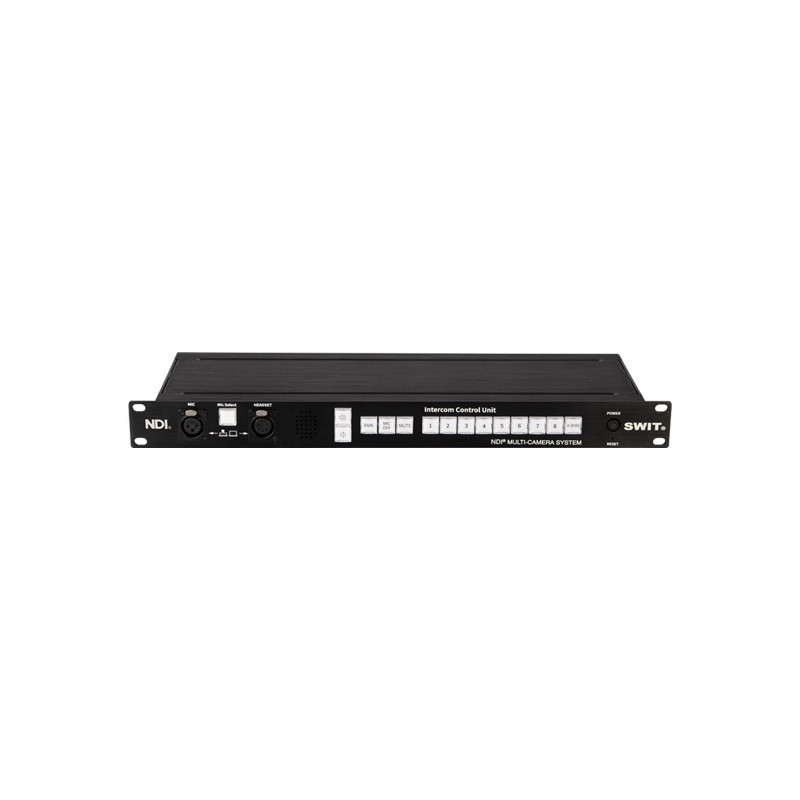

ET-N80 - NDI EFP Intercom Control Panel

Swit NDI Intercom Console with 8-ch camera operational

- LAN connection full duplex intercom with cameramen
- Work with both EC-N200 and EC-N200-4K adaptors
- Select intercom channels or ANN annoucement mode
- Headphone and swan neck mic connectors
- 4-wire to connect 3rd party intercom system
- Webserver configuration and firmware update
- 19-inch 1RU rack mount

° Intercom Control Panel of NDI EFP System
ET-N80 is he Intercom Control Panel of Swit NDI EFP Multi-camera Production System at director's side.
The Intercom control Panel can bind with 8 camera adptors (both HD and 4K versions) and supports link connection for more channels, and with only 1xRJ45 cable connected into the NDI network.

° Full Duplex Intercom
The ET-N80 Intercom control panel supports full duplex interco between director and cameramen.
The director can select camera nubers and comunicate with each cameraman, and select ANN button to male annoucement to everyone.

° Front Control
The EN-N80 provides a 5-pin headset and a swan-neck microphone, to connect into the front panel, and switchable between the headset and microphone.
You can select camera channel, adjust volume, turn off the mic, or mute all he channels, directly by the buttons.

° Rear Interfaces
The ET-N80 is connected into NDI network simply by an Rj45 cable.
Set up IP address or rebundle with camera adaptors by webserver configuration page.
The voice lnk port is to serial connect more units, or connect with 3rd party intercom system.

° 4-wire External Intercom System connect
If you are using other intercom system like Clear-Com, you can connect this intercom control panel to clearcom through the 4-wire port, and press the link button to take over Clear-Com channels.

Headset: 5-pin XLR ×1
Microphone: 3-pin XLR ×1
LAN connection: RJ45 ×1
Link connection: RJ45 ×1 (4-wire)
AC Input: 100-240V, 0.5A
DC Input: 11-17V, 1.5A
Power Consumption: 16W
Working Temperature: 0-40°C
Dimension: 482.6×164.4×44.5mm
Net weight: 1.5kg
