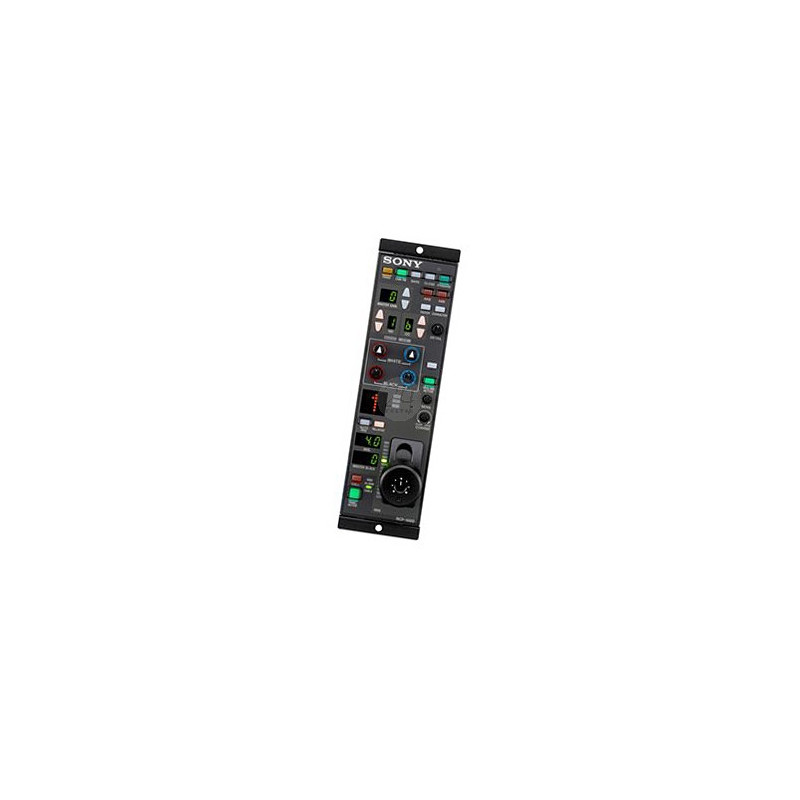

The RCP-1000 is simple remote control panel with specialised basic operations. The iris and master black adjustment block employs a joystick type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used.
Simple and compact. This remote control panel is provided with the control functions required to perform the basic operations of cameras and enables the simple and accurate operation of various functions. IRIS/MB (master black) display window. The IRIS window displays the iris setting as an F number. If the lens is closed, "CLS" is displayed. The Master black display window displays the master black setting value. Direct control filters and master gain buttons Easily access ND/CC filters as well as master gain control. Customisable switch. Customer can assign any function to a spare switch. Compatible with a variety of control systems HDC/HSC/BVP system camera users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700's, two CNUs can be used to control a camera system of up to 24 cameras.
A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.

Power supply: DC 10.5 V to 30 V
Power consumption: 2 W
Operating temperature: 5°C to 40°C (41°F to 104°F)
Dimensions (W x H x D) (excluding protrusions): 68 × 244 × 123.7 mm (2 3/4 × 9 5/8 × 4 7/8 in)
Mass: 1.1 kg (2 lb 9 oz)
Input/output connectors: CCU/CNU
Multi-connector 8-pin, female (x1): EXT I/O
D-sub 9-pin, female (x1)
