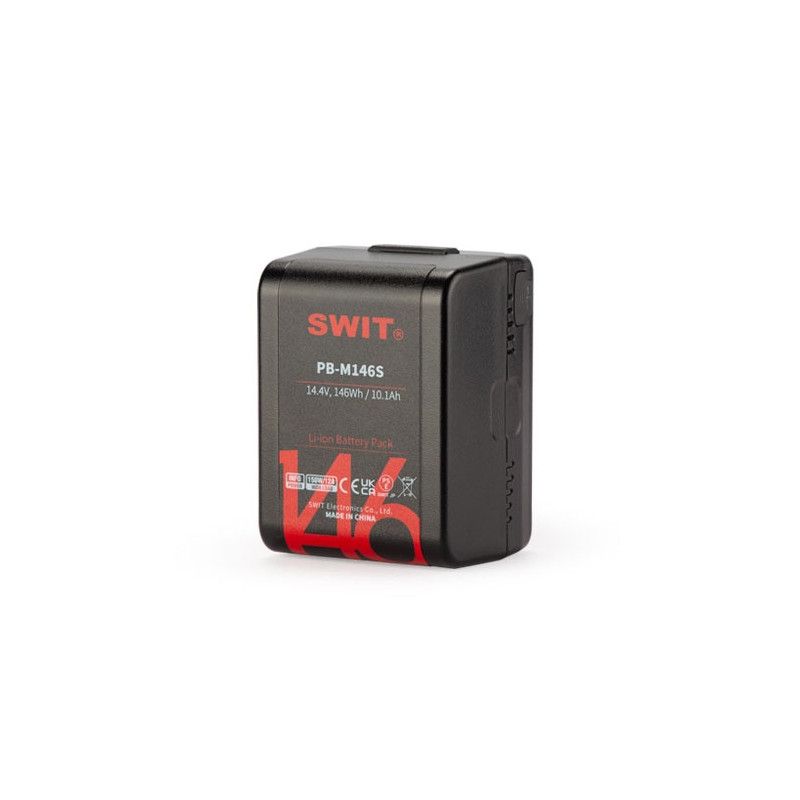

Swit 146Wh Pocket V-mount Battery Pack

Swit 146Wh Pocket V-mount Battery Pack

Pocket V-mount battery
As a new member of PB-M series Pocket V-mount batteries, the PB-M146S provides 146Wh larger capacity to extend run time, and still tiny size for convenient carrying.

146Wh, D-tap and USB
PB-M146S has 14.4V nominal voltage, 146Wh large capacity, and 5-step LED power indicator, built-in D-tap DC output & charging input, and USB-A 5V/2A power out.
The constant load is 150W, 12A.

Hot-Swap Adaptor
You can use 2x PB-M146S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get one-by-one hot swap uninterrupted power, and equivalent to a standard size V-mount battery.

50W/3A Fast Charging
PB-M146S can be charged by all standard V-mount chargers and D-tap chargers.
The following chargers are recommended:

S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M146S: Approx. 3hrs 45min
PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M146S: Approx. 3hrs 45min
Charge 2x PB-M146S: Approx. 6 hours

Wire-Free Internal Tech
PB-M146S has innovative "Wire-Free" internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Battery plate: V-mount
Nominal voltage: 14.4V
Capacity: 146Wh, 10.1Ah
Power output
In total: 150W
Electrodes: 150W,12A
USB:10W, 5V/2A
D-tap: 100W / 10A
Charging input: 16.8V 3A (Max)
Charging Temperature: 0-40°C
Discharging Temperature:
-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)
Dimension: 100×74×63.7mm
Net weight
Net: 0.72kg
With package: 0.75kg
