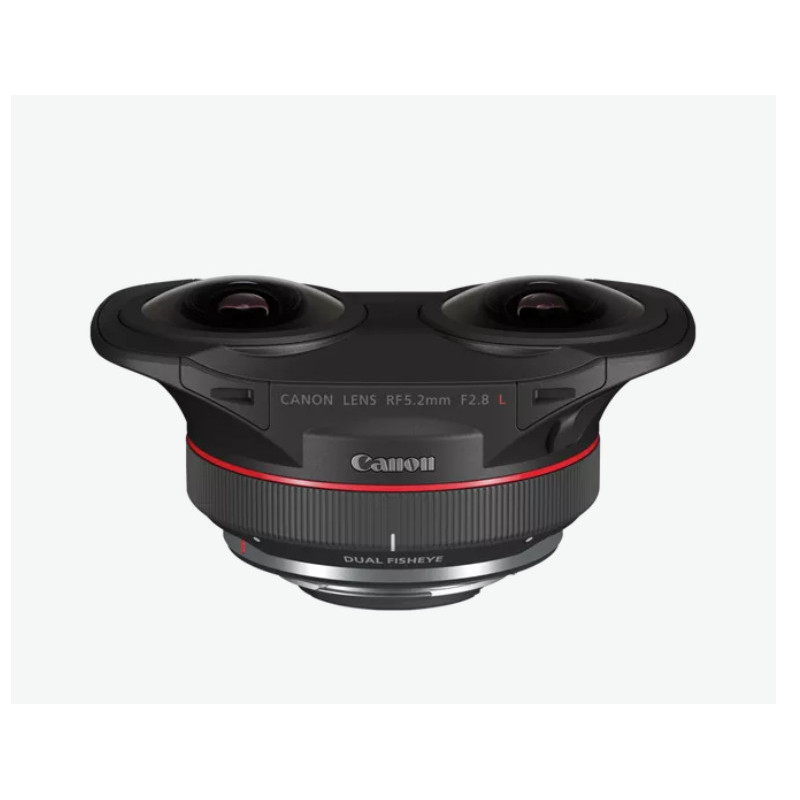

Capture the world in virtual reality thanks to the RF 5.2mm F2.8L DUAL FISHEYE; a compact, stereoscopic L-series RF lens capable of capturing super-sharp content that - with the rest of Canon's EOS VR SYSTEM, including a camera and software solution - transforms footage into a truly breathtaking visual experience, immersing you within the environment.

Amazingly practical (3D) 180° VR capture
The compact, single mount design simplifies quick camera setups for professional stereoscopic 180° VR capture, when using compatible high resolution, Full Frame, RF mount cameras, such as the EOS R5

Efficient and simplified workflow
Featuring a stereoscopic 190° field of view, two offset circular fisheye images are perfectly synchronised and recorded side-by-side onto a single Full Frame sensor, ready for Canon's powerful EOS VR Utility2/plug-in2 to seamlessly process for final edit, requiring no additional stitching.

High quality image capture
Featuring perfectly aligned, dual forward facing fisheye lenses, the RF 5.2mm F2.8L DUAL FISHEYE utilises two UD elements per lens to correct for aberrations plus Canon's special SWC coatings to reduce ghosting and flare, even in backlit conditions.

Fast f/2.8 aperture for low light shooting
The RF 5.2mm F2.8L DUAL FISHEYE performs superbly in low light thanks to a fast f/2.8 aperture with accurately synchronised exposure and precise control via a dual Electro Magnetic Diaphragm (EMD) design.

L-series build and weather resistance
Because it's an L-series lens, the RF 5.2mm F2.8L DUAL FISHEYE is built for professional use. It is dust and splash resistant and features fluorine coatings to repel water and dirt on the lens surface.

Gel filter holder for precise exposure control
The RF 5.2mm F2.8L DUAL FISHEYE has a rear-mounted gelatin filter holder for pre-cut ND gels which can be used to help precisely control light levels when in use on 180° VR video productions.

Dual fisheye lens

Capturing a perfectly aligned stereoscopic image onto a single Full Frame sensor
190° field-of-view

Capturing an ultra-wide viewing angle for a more immersive experience
60mm baseline length

Providing a natural stereoscopic viewing experience
F2.8 aperture

Exceptional performance in low light
UD elements and SWC coatings

Professional image quality for sharp, high contrast images, with reduced ghosting and flare
Dual EMD units

Precise control and synchronisation of the aperture ensures even exposure between the two left and right images
L-series quality

Designed and built to perform in demanding conditions
Built-in rear gelatin filter holder

For increased flexibility when shooting in bright conditions



Image Size
Full frame
Angle of View (Horzntl, Vertl, Diagnl)
190°, 190°, 190°
Lens Construction (Elements/Groups)
10/12
Special Optics
2 x UD
Number of Diaphragm Blades
7
Minimum Aperture
16
Closest Focusing Distance (m)
0.2
Maximum Magnification (x)
0.03
Control Ring
No
Coatings
Super Spectra, SWC
Fluorine
Front

Accessories

Lens Cap
Lens Cap 5.2 (center pinch type)
Lens Case/Pouch
LS1014
Rear End Cap
Lens Dust Cap RF
Extender Compatibility
Not Compatible
Other Accessories
Hexagon wrench

Physical Specifications

Dust/Moisture Resistance
Rubber ring on lens mount 1
Filter Diameter (mm)
Rear-mounted gelatin filter (35x20mm)
Max. Diameter x Length (mm)
(121.1 x 83.6) x 53.52
Weight (g)
350
