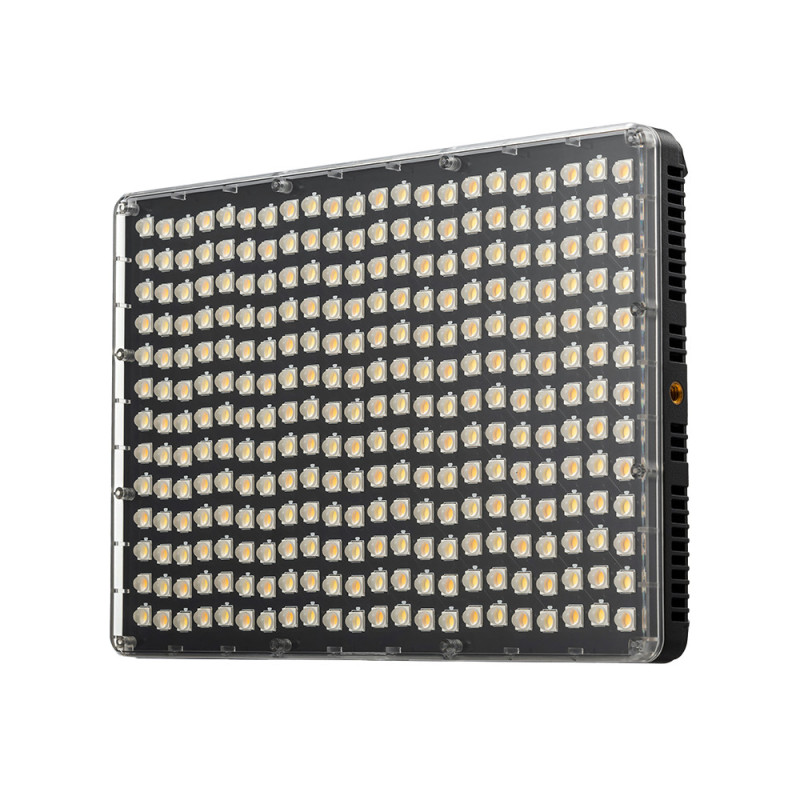

The Amaran P60X is an expanded bi-color LED panel designed for
content creators, videographers, and indie filmmakers. Its optical
design (45°) allows the P60x to use its 60W bi-color LED chipset to
produce high-intensity light output, measuring a staggering 5,070+
lux at 1 meter (5600K). In addition, using the control knobs or the
built-in Sidus Link App integration, users can adjust the color
temperature of the P60x between 3200K-6500K. Using the Sidus
Link app, users can also take advantage of specialized tools such as
Source Match and Custom FX.
The Amaran P60x also accomplishes these feats while maintaining
excellent color rendering scores of CRI =95 and TLCI =97.
The P60x can be operated using the included AC Power Supply or
two Sony NP-F Style batteries for over an hour. When connected to
AC Power, the P60x can also charge NP-F Style batteries, making it
the perfect multi-tool for content creators.
With the unique design of the P60x, users can attach the included
collapsible soft box to the four corners of the panel without any
tools or screws. The P60x also includes a 45° light control grid for
the soft box, limiting spill light and easily attaching using hook-andloop fabric.
The Amaran P60 series is compact, lightweight, and portable,
making it a flexible tool for any video.

CCT: 3200K~6500K

CRI: =95

TLCI: =97

CQS: =95

TM-30 RF (Average): 93
TM-30 RG (Average): 104
SSI (Tungsten): =84
SSI (D56): =72

Beam Angle (Half-Peak Angle): 45°
Max Power Output: =60W
Max Power Consumption: =78W
Operating Current: 4.5A

Operating Voltage:
AC Power Supply 15V DC
D-Tap Battery 12-16.8V DC
NP-F Battery 6.5V-8.4V DC

Battery:
Charging Battery Type Sony NP-F Style

DC Input:
2-Pin DC Self-locking
Waterproof

AC Power Cable:
Self-locking IEC C13 AC
Power Cable (1.5m)

Operating Temperature: -20°C ~ 45°C

Control Methods: On-board, Sidus Link App

Connectivity: Bluetooth 5.0 (Sidus Mesh)

Bluetooth Operating Range: =80m
Firmware: Upgradeable Sidus Link OTA

Display Type: OLED
Cooling Method: Active Cooling

Accessories:
Umbrella Holder Yes
Soft Box Yes
Mounting 1/4-20in * 3, Tilting Support
Column

Estimated LED Lifetime: (L70) 50,000 Hours
Estimated Color Shift: Over
Lifetime (CCT): 2% over 6,000 Hours

Certifications: CE, FCC, cTUVus, KC, NCC,
ROHS

Packing Dimensions: 36*19*23cm

Net Weight: 2.320kg

Gross Weight: 3.080kg

Carton Qty: 2pcs / Carton

Carton Dimensions 43.5*42.5*30.6cm

Carton Weight 6.96Kg

Technical Specifications

Dimensions

Fixture
25.1*17.5*3.95cm

Aperture 25.07*17.37cm

Soft Box (Collapsed) 20*20*2.5cm

Soft Box (Built) 39.5*28.5*10cm

Carrying Case: 25.7*18*9.5cm

Weight
Fixture: 0.979kg
Soft Box: 0.17kg
Power Supply: 0.50kg
Mounting Bracket: 0.24kg
