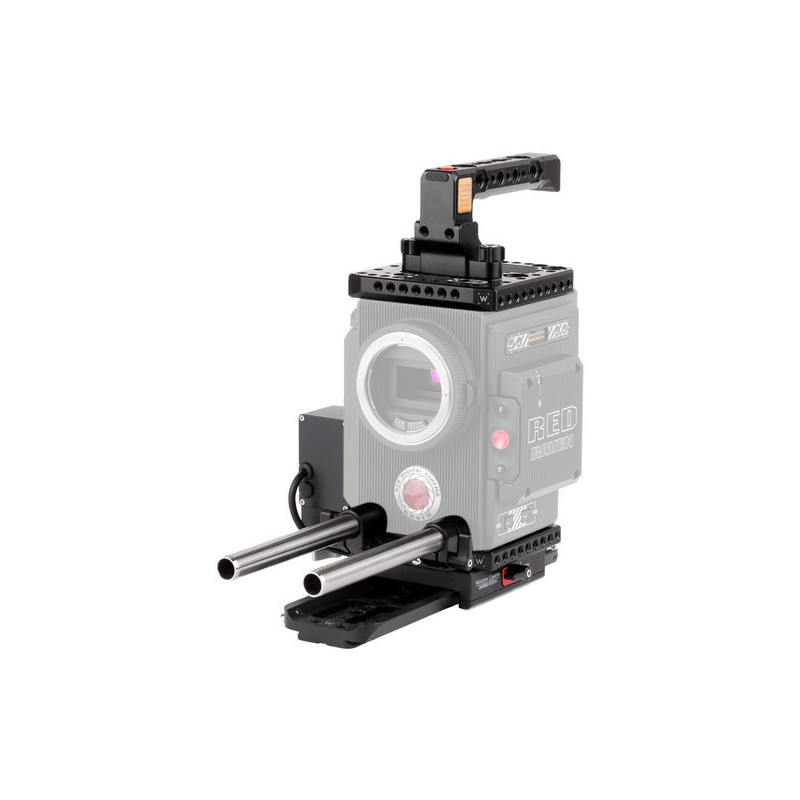

Use the range of accessories found in Wooden Camera's 15mm LWS RED DIGITAL CINEMA DSMC2 Accessory Kit to build your DSMC2 BRAIN, WEAPON, EPIC WEAPON, SCARLET WEAPON or RAVEN. This kit includes an Easy Riser Plate, a 15mm LWS Pole Bracket, a pair of 6 "15mm rods, an 8" safety dovetail plate, a through top plate, a trigger handle and a 3.5mm A-Box audio to XLR adapter. Read more about these kit items below.

Wooden camera pass-through top plate for RED DSMC2 cameras

The RED DSMC2 Wooden Camera Feed Through Top Plate attaches to the top of the DSMC2 camera using four captive screws and provides additional mounting points for accessories. The plate also incorporates the 26-pin LCD and 3-pin trigger connections, which pass signals to the camera connections. This allows you to mount your RED LCD monitor and Trigger Grip as you would on your camera without the plate providing multiple threaded accessory mounting points.
The plate incorporates 61 1/4 "-20 threaded mounting holes along the edges and top, as well as two 3/8" -16 threaded holes and 4 3/8 "-16 threaded mounting holes with ARRI divides Anti-Twist. Two additional 3/8 "-16 threaded mounting holes are reserved for use by the LCD connector. The top plate is vented, allowing air from the camera's top vents to pass through unobstructed.

Wooden Easy Riser Camera Plate for select RED cameras

Wooden Camera's Easy Riser Plate for Selected RED Cameras is a thick riser plate designed to work with RED Weapon, Scarlet Weapon, Raven and any other DSMC2 cameras. It can be used in conjunction with the 19mm Bridgeplate, 15mm Studio or other RED style bridges to achieve studio rods with the correct lens height. It can also be combined with the 15mm LW bracket (Arma / Scarlet-W / Raven) for lightweight rods at the correct lens height.

It is important to note that this riser is also compatible with our original 15mm LW bracket for RED Epic / Scarlet.

Dovetail clamp for wooden camera

The wooden camera dovetail clamp allows you to attach cameras, baseplates or accessories to a standard ARRI dovetail. It features slots in multiple locations for inserting mounting screws from below and comes with two low profile 3/8 "-16 and two 1/4" -20 low profile screws.

Security Dovetail Plate for Wooden Camera (8 ")

The 8 "wooden camera safety dovetail plate is an ARRI standard dovetail with a set screw on one end and a safety catch on the other to prevent accidental detachment of the camera. 1 / 4-20 and 3 / 8-16 threaded holes for mounting accessories and tripod mount The dovetail can be attached to a shoulder strap for custom manual setups.

Wooden Camera Box A for RED KOMODO, WEAPON, EPIC-W, SCARLET-W, RAVEN and DSMC2

Connect XLR audio sources to your RED KOMODO, WEAPON, EPIC-W, SCARLET-W, RAVEN or another DSMC2 body with the Wooden Camera A-Box. The A-Box provides two 3-pin XLR inputs and outputs to the RED base expansion module using its 3.5mm stereo audio jack. Attaches to your camera rig using the integrated 19mm rod clamp or with the included 15mm rod bushing. Also included is a 1/4 "-20 mounting solution that uses a bolt-on 19mm short rod to mount the A-Box without rods.

15mm Wooden Camera Support Rod (3 ")

This is a single 15mm 3 "length wooden camera support rod for mounting accessories. It is beveled at each end for easy sliding of accessories and has a hollow interior that provides maximum strength.

Assembly
Connectors:
1 x 26 pin for LCD
1 x 3 Pins for Trigger Handle
Mounting: 4 x 1/4 "-20 studs
Accessories mounting: 1/4 "-20
27 x Board
34 x Superior
3/8 "-16
2 x Superior
2 x For LCD Adapter
4 x ARRI Anti-Twist
Size: 4 x 4.25 x 0.75 "/ 101.6 x 107.95 x 19.05mm
Weight: 6.08oz / 172.4g
Packaging information
Package Weight: 0.445lbs
Box Dimensions: 5.25 x 4.6 x 1.25 "
Wooden Camera Easy Mount Plate For Selected RED Camera Specifications
Size: 0.5 x 4 x 4 "/ 12.7 x 177.8 x 177.8mm
The weight: 0.4lbs / 181g
Packaging information
Package Weight: 0.355lbs
Box Dimensions: 4.75 x 3.85 x 0.8 "
Wooden Camera Trigger Handle For RED WEAPON, SCARLET WEAPON AND RAVEN Camera Specifications
Item type: Top handle with flat cheese style handle
Rotation: No
Integrated controls: Remote activation
Assembly
Attachment Method: Attaches via 2 integrated 1/4 "-20 screws
Compatibility
Connects directly to the camera: RED DSMC2
Accessories mounting:

Multiple Thread x 1/4 "-20 Thread
multiple x 3/8 "-16 Thread
multiple x ARRI Anti-Twist 3/8 "-16
Shoe Fitting: None
Rosette: None
Rail mounting: None
Packaging information
Package Weight: 0.475lbs
Box dimensions (LxWxH): 5.3 x 4.2 x 2.85 "
Specifications Of Wooden Camera Dovetail Clamp
Dimensions: 3.5 x 4 x 0.8 "(9 x 10 x 2cm)
The weight: 0.4 lbs (lbs (164g)
Packaging information
Package Weight: 0.47lbs
Box Dimensions: 4.9 x 3.85 x 1 "
Specifications Of Wooden Camera Safety Dovetail Plate (8 ").
Size: 8.0 x 2.7 x 0.5 "/ 20.3 x 6.8 x 1.3cm
The weight: 0.6lbs / 0.3kg
Packaging information
Package Weight: 0.635lbs
Box Dimensions: 9 x 2.8 x 0.65 "
Wooden Camera Box A For Specifications RED KOMODO, WEAPON, EPIC-W, SCARLET-W, RAVEN AND DSMC2
Inputs: 2 x 3-pin XLR
Outputs: 1 x 3.5mm stereo jack
Mounting options:
19 mm rod
15 mm (with bushing included)
1 x 1/4 "-20 Screw
Cable Length: 7 "/ 17.8cm
Size: 7 x 3 x 3 "/ 17.8 x 7.6 x 7.6cm
The weight: 12.8oz / 363g
Packaging information
Package Weight: 0.685lbs
Box Dimensions: 6.75 x 4.4 x 3.3 "
Wood Specification For 15mm (3 ") Camera Support Rod
Barrel size: 15 mm
Barrel Length: 3 "(7.5cm)
Packaging information
package weight: 0.08lb
Box Dimensions: 3.05 x 1.05 x 0.6 "
