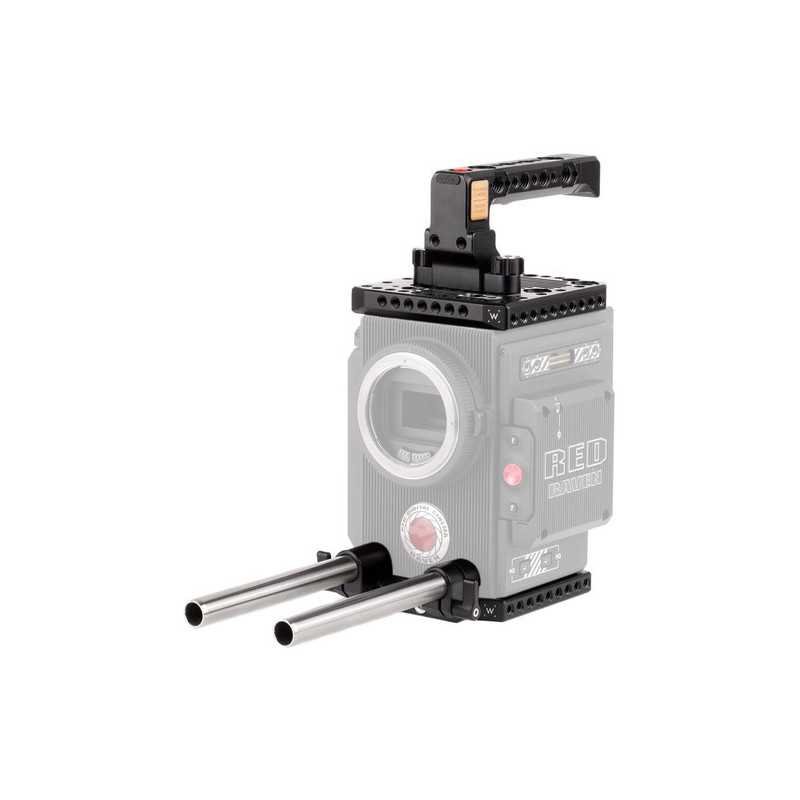

Secure and add accessory mount to your DSMC2 camera with Wooden Camera's RED DSMC2 Accessory Kit. This kit provides a 15mm rod system and multiple threads for attaching professional camera accessories and includes a RED monitor pogo interface and trigger handle. Kit components include the Easy Rider baseplate, a pass-through top plate, a top trigger handle, a 15mm LWS rod bracket, and two 6 "rods.

Wooden camera pass-through top plate for RED DSMC2 cameras
The RED DSMC2 Wooden Camera Feed Through Top Plate attaches to the top of the DSMC2 camera using four captive screws and provides additional mounting points for accessories. The plate also incorporates the 26-pin LCD and 3-pin trigger connections, which pass signals to the camera connections. This allows you to mount your RED LCD monitor and Trigger Grip as you would on your camera without the plate providing multiple threaded accessory mounting points.

The plate incorporates 61 1/4 "-20 threaded mounting holes along the edges and top, as well as two 3/8" -16 threaded holes and 4 3/8 "-16 threaded mounting holes with ARRI divides Anti-Twist. Two additional 3/8 "-16 threaded mounting holes are reserved for use by the LCD connector. The top plate is vented, allowing air from the camera's top vents to pass through unobstructed.

Wooden Easy Riser Camera Plate for select RED cameras
Wooden Camera's Easy Riser Plate for Selected RED Cameras is a thick riser plate designed to work with RED Weapon, Scarlet Weapon, Raven and any other DSMC2 cameras. It can be used in conjunction with the 19mm Bridgeplate, 15mm Studio or other RED style bridges to achieve studio rods with the correct lens height. It can also be combined with the 15mm LW bracket (Arma / Scarlet-W / Raven) for lightweight rods at the correct lens height.

It is important to note that this riser is also compatible with our original 15mm LW bracket for RED Epic / Scarlet.

15mm Wooden Camera Support Rod (3 ")
This is a single 15mm 3 "length wooden camera support rod for mounting accessories. It is beveled at each end for easy sliding of accessories and has a hollow interior that provides maximum strength.

In the box
-Wooden camera pass-through top plate for RED DSMC2 cameras
- 4 x 1/4 "-20 stud screw
- 1 year limited warranty
- Wooden Easy Riser Camera Plate for select RED cameras
-2 captured 3/8 "-16 riser screws
- 1 year limited warranty
-15mm Wooden LWS Rod Bracket for RED Gun Camera
-Wooden snap grip for RED WEAPON, SCARLET WEAPON and RAVEN cameras
- 2 x 15mm (3 ") wooden camera support rods
- 1 year limited warranty

Assembly
Connectors
1 x 26 pin for LCD
1 x 3 Pins for Trigger Handle
Mounting: 4 x 1/4 "-20 studs
Accessories mounting:
1/4 "-20
27 x Board
34 x Superior
3/8 "-16
2 x Superior
2 x For LCD Adapter
4 x ARRI Anti-Twist
Dimensions: 101.6 x 107.95 x 19.05 mm
The weight: 172.4 g
Packaging information
package weight: 0.20
Box dimensions: 13.3 x 11.6 x 3.1 cm
Wooden Camera Easy Mount Plate For Selected RED Camera Specifications
Dimensions: 12.7 x 177.8 x 177.8mm
The weight: 181 g
Packaging information
package weight: 0.159kg
Box dimensions: 12.1 x 9.8 x 2.03 cm
Item Type: Top Handle with Cheeseplate-Style Handle
Rotation: No
Integrated controls: Remote activation
Assembly
Attachment Method: Attaches via 2 integrated 1/4 "-20 screws
Compatibility
Connects directly to the camera: RED DSMC2
Accessories mounting:
Multiple thread x 1/4 "-20
Multiple thread x 3/8 "-16
Multiple thread x ARRI Anti-Twist 3/8 "-16
Shoe Fitting: None
Rosette: None
Rail mounting: None
Packaging information
package weight: 0.21kg
Box dimensions (LxWxH): 13.4 x 10.6 x 7.2 cm
Wood Specification For 15mm (3 ") Camera Support Rod
Barrel size: 15 mm
Barrel length: 7.5 cm
Packaging information
package weight: 0.08lb
Box size: 7.8 x 2.6 x 1.5cm
