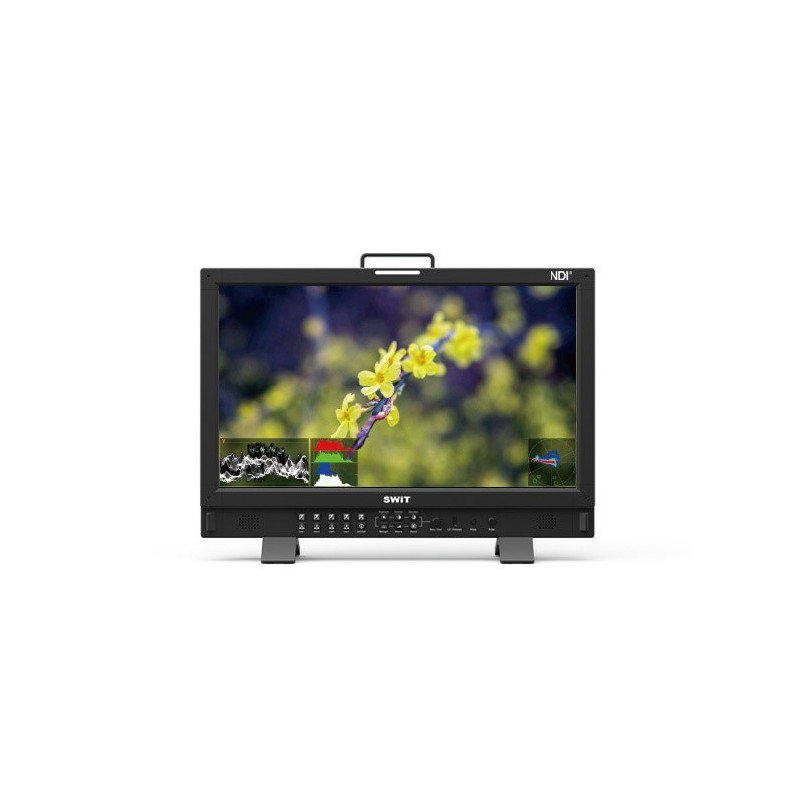

Swit Professional Monitor 21.5-inch 1920×1080 IPS LCD Panel
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
High bandwidth 4K NDI® monitoring
3GSDI 2-in 1-loop, HDMI2.0 input
NDI® decode to 3GSDI output
NDI®/SDI/HDMI PBP or PIP view
Auto detect and quick select NDI® sources
Support NDI® Discover Server
Support NDI® Low bandwidth mode
Rec 709 / DCI-P3 / Rec 2020 color gamut selection
3DLUT Auto Self-calibration without PC
Built-in Delog LUTs and User LUTs upload by USB
Waveform / Vector / Histogram
Focus assist / False color / Zebra-
16-ch audio meters / Lissajous pattern
IP webserver remote control
AC, DC and battery plate power



LCD Performance

Size : 21.5 inches
Display area : 476×268mm
Resolution : 1920×1080
Aspect ratio : 16:9
Brightness : 400nits
Contrast : 1000:1
Color Gamut : 100% DCI-P3
Color depth: 16.77M colors, 8-bit
Eye Protect : VICO 1.97
Viewing angle : 178°(H) /178°(V)

Input
---------------
° RJ45 ×1
° High bandwidth 4K NDI®
° BNC ×2
° 3G/HD/SD-SDI input
° HDMI ×1
° HDMI 2.0 input
° RS485 ×1
° TSL 3.1/4.0 UMD input
° RS485 ×1
° GPI (Tally) input

Output
---------------
° BNC ×1
° 3G/HD/SD-SDI loop output
° BNC×1
° NDI® decoded to SDI output
° RS485 ×1
° TSL 3.1/4.0 UMD output

Analog audio : 3.5mm headphone and speaker

Video Format
NDI®
4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

NDI® decoded to SDI out
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

SDI IN1/2 and LOOP
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50)

HDMI IN
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General

Input voltage : DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption : 40W
Working temperature : 0°C~+50°C
Working humidity : 10%~90%
Storage temperature : -15°C~+60°C
Storage humidity : 10%~90%
Dimensions : 530.6×364.3×74.2mm
Net weight (main body) : 6.05kg
