4002 15mm Dovetail Baseplate

Name: 4002 15mm Dovetail Baseplate
Brand: SmallRig
SKU: SMA2/4002
Price: 118.96 EUR
Availability: PreOrder

118,96 €

TTC

99,13 € HT

Découvrez la SmallRig 4002, une baseplate 15mm Dovetail légère et robuste, pesant seulement 318g tout en supportant jusqu'à 20kg. Compatible avec les plaques ARRI, elle assure une fixation sécurisée grâce à ses vis 1/4"-20 et 3/8"-16. Son design compact de 38mm de hauteur abaisse le centre de gravité de votre caméra, tout en offrant un espace suffisant pour des tiges doubles. Fabriquée en aluminium et acier inoxydable, elle est livrée avec tous les accessoires nécessaires. Garantie 2 ans.

Garanties Constructeur France - Europe

Garantie constructeur France - Europe

Information livraison

Livraison France métropolitaine offerte à partir de 100 Euros TTC

Garantie / SAV / Retour

Paiements Sécurisés

Paiement CB 1 à 4 fois, Virement, Mandat Administratif

Description
Avis

Info

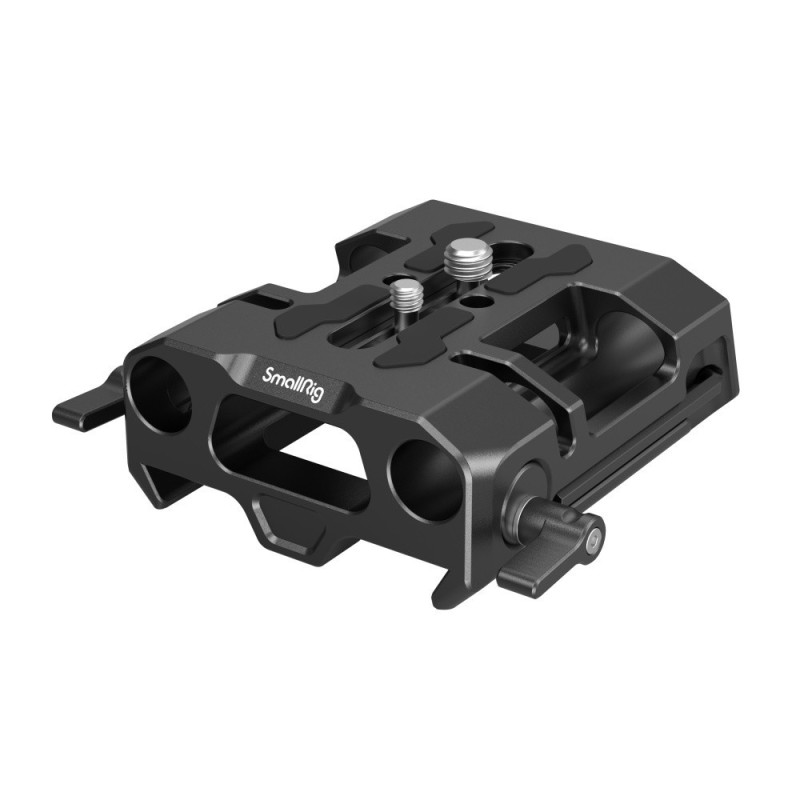

SmallRig 4002 15mm Dovetail Baseplate

SmallRig 15mm Dovetail Baseplate , which is ARRI dovetail plate compatible, has a hollowed-out structure to weigh only over 300g yet it can bear as much as 20kg. One 1/4"-20 screw and one 3/8"-16 screw, through the top though slots, lock the camera to prevent twist; and a wrench is built into the side for assembly and disassembly without affecting the use of the baseplate. The baseplate features a 1/4"-20 threaded hole and a 3/8"-16 threaded hole at the bottom that supports other quick-release plates besides ARRI ones. With a low center of gravity, it measures only 38mm in height, so the camera is only 28mm away from the dovetail plate, lowering the height of the camera while leaving enough room for dual rods.

Note:

1. For a camera with a lower center of the optical axis, a cage or a height riser plate is recommended while using this product and dual 15mm rods.

2. The center of rods is 15mm away from the top of the dovetail plate, and 13mm away from the top of the baseplate.
