3263 Wireless Receiver Motor

Name: 3263 Wireless Receiver Motor
Brand: SmallRig
SKU: SMA2/3263
Price: 168.55 EUR
Availability: PreOrder

168,55 €

TTC

140,45 € HT

Découvrez le SmallRig 3263 Wireless Receiver Motor, un moteur de suivi sans fil ultra-performant. Doté d'un écran OLED de 0,52", il fonctionne avec une large plage de tension (5V-16.8V) et offre une puissance de 9V/18W avec un couple de 0,5N.m. Compatible avec divers objectifs DSLR et ciné, il se fixe facilement sur des barres de 15 mm. Profitez d'une connexion sans fil avec la manette de contrôle et d'une faible latence en mode câblé. Idéal pour des prises de vue précises et professionnelles.

Garanties Constructeur France - Europe

Garantie constructeur France - Europe

Information livraison

Livraison France métropolitaine offerte à partir de 100 Euros TTC

Garantie / SAV / Retour

Paiements Sécurisés

Paiement CB 1 à 4 fois, Virement, Mandat Administratif

Description
Avis

Info

SmallRig 3263 Wireless Receiver Motor

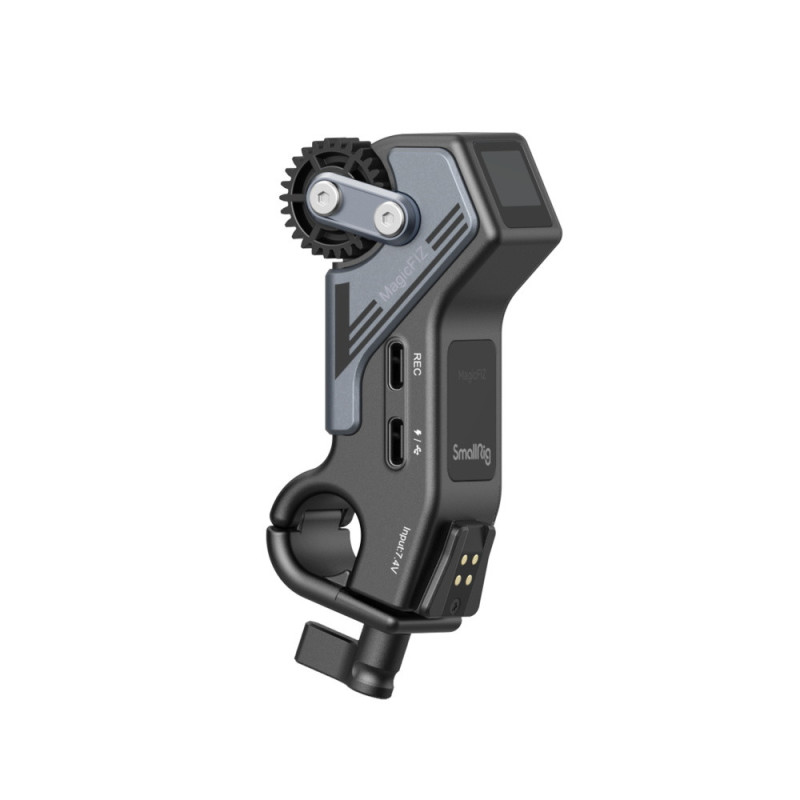

The SmallRig 3263 Wireless Receiver Motor, an accessory of wireless follow focus system, comes with an ultra-low-power 0.52" OLED screen, supports 5V-16.8V wide input voltage , fast charging and provides 9V/18W and 0.5N.m torque output. It can be powered by Battery Plate (ID: 3777) with NP-F batteries or by USB-C to D-Tap Cable (ID: 3266) and USB-C to DC cable (ID: 3268) with V-Mount batteries. The Wireless Receiver Motor features an open-end rod clamp to avoid any obstacles on Φ15mm rod and allows for handheld and over-the-shoulder shooting for precise follow focus when working with Multi-Functional Wireless Handgrip 3917. It connects Wireless Handwheel Controller via control cables (ID: 3325, 2971, 2970, depending on your camera type) for wireless REC start/stop. Also, in cabled mode, it has ultra-low delay of about 5ms.

Note:

Wireless Receiver Motor and Wireless Handwheel Controller can be operated only under the same frequency band and number
A calibration is required when wireless receiver motor reverses rapidly or handwheel screen displays abnormal location information
The two USB-C ports come with different functions
For instructions, please refer to the Wireless Follow Focus System User Manual

Characteristics

Compatibility: Φ49/Φ52/55/58/62 Φ67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
Φ15 rail support system
M0.8 lens and follow focus lens gear ring
Incompatible with non-SmallRig wireless follow focus system
Supports fast charging
