TLM-170VR

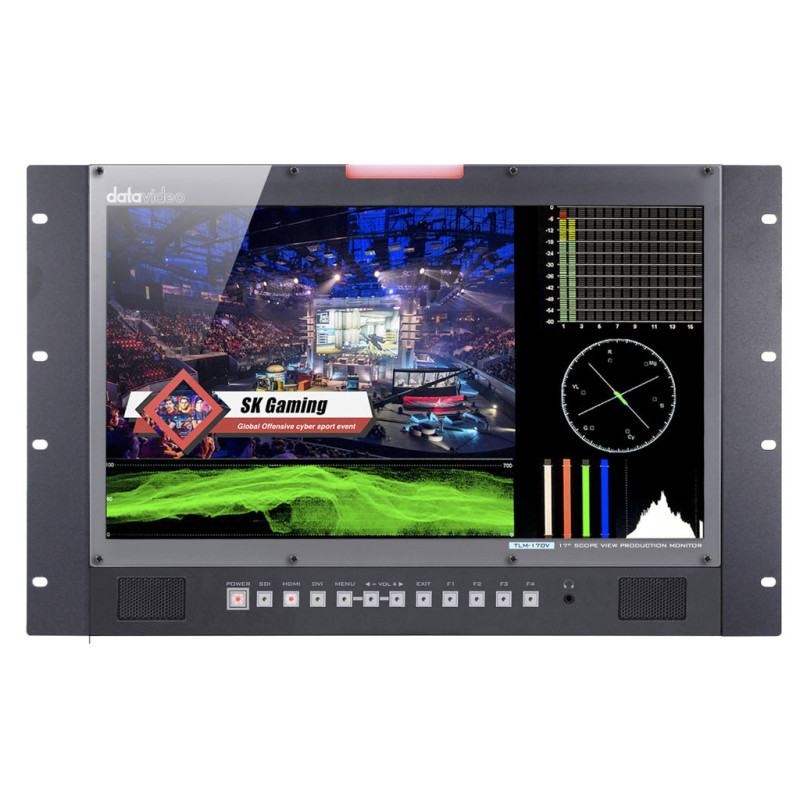

17" ScopeView Production Monitor-Rack Mount

17.3" Full HD Rack Mount monitor
Supports 3G/HD/SD 1920x1080 panel resolution.

Supports multiple input and output configurations
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through

SDI, HDMI cross conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

Tally light
Tally light included. Best use for live production.

TLM-170VR 17" ScopeView Production Monitor-Rack Mount
Screen	17.3" LED Backlit
Chassis	7RU Rack Mount
Resolution	1920x1080
Viewing Angle	(H) +89/-89° (V) +89/-89°
Luminance/Contrast	300cd/m² 700:1
Video Inputs	1x 3G/HD/SD-SDI 2x HDMI
Loop Through	1x 3G/HD/SD-SDI 1x HDMI
Supported Input Resolutions	1080p(23.98/24/25/29.97/30/50/59.95/60Hz) 1080i(50/59.94/60Hz), 720p(50/59.94/60Hz), 576i(PAL), 480i(NTSC)
Aspect Ratio	16:9, 4:3
Tally LED	Live (Red) Cued (Green)
Audio In/Out	2x Speaker 1x Headphone Jack
Special Features	SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field
Dimension (LxWxH)	403 x 305 x 41 mm
Weight	4.5 kg
Operating Temp. Range	0~40 °C
Power	DC 10-18V, 32W
