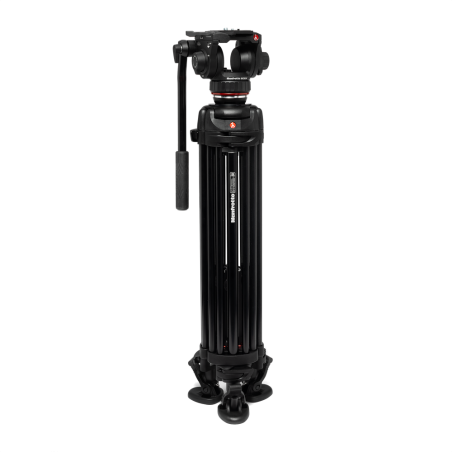

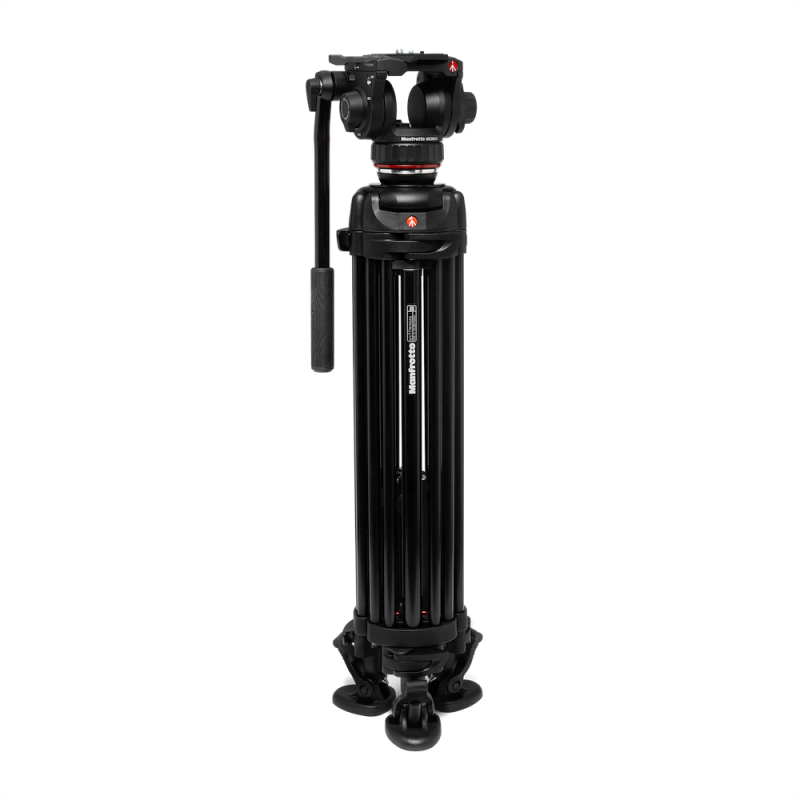

Manfrotto 502X Fluid Video Head Kit with Aluminum Twin-Leg Tripod (MS) - 8 kg Payload

The system comprising the Manfrotto 502X fluid video head and the MVTTWINMA aluminum twin-leg tripod combines smooth movement, rigid support, and precise control, offering a complete, reliable solution for modern production environments—whether in the studio or on location.

502X Fluid Video Head
Designed for videographers using mirrorless cameras and compact camcorders, the 502X head is part of the Manfrotto Bridging Technology range.
The Variable Continuous Fluid Drag System (FDS) on both pan and tilt axes ensures flawless control for cinematic shots and consistently accurate framing.
For optimal equipment handling, the integrated Counterbalance System (CBS)—calibrated for a 4.4 kg load with a 55 mm center of gravity—keeps the setup perfectly balanced, reducing operator strain.
Rapid setup and maximum versatility
The 504PLONG-style sliding plate, featuring a quick-release top attachment and side lock, allows for camera positioning and balancing in seconds. Independent brakes ensure stability in any position, while 3/8" Easy Link connections allow for the secure mounting of external monitors or accessories.
The 75mm flat base makes the 502X fully compatible with tripods, sliders, dollies, and the Manfrotto XCHANGE quick-release system, enabling rapid setup changes on location.
With a maximum payload of 8 kg, it is the ideal choice for commercials, documentaries, and multi-camera productions.

Aluminum Twin-Leg Tripod (100/75 mm)
The MVTTWINMA video tripod features a robust two-stage, twin-leg design, engineered to support heavy setups and withstand demanding working conditions.
The integrated 100mm half-ball provides a stable base and includes a 75mm adapter, ensuring maximum versatility with various video heads.
Stability
The mid-level spreader with telescopic arms allows for quick and precise leg-angle adjustment, ensuring stability even on uneven surfaces.
The spreader is also removable, allowing for use with the Manfrotto 165MV ground-level spreader.
Secure leg locks and spiked feet with rubber overshoes provide excellent grip on both smooth studio floors and outdoor terrain.
The system is completed by a practical padded bag for transporting and protecting the equipment.

Payload: 8 kg
Counterbalance weight: 0, 4.4 kg
Maximum height: 167.3 cm
Minimum height: 73.3 cm
Base diameter: 75 mm
Closed length: 84.3 cm
Top attachment: 1/4″ screw, 3/8″ screw
Front tilt: -70° / +90°
Material: Aluminum
Maximum working temperature: 60°C
Minimum working temperature: -30°C
Pan rotation: 360°
Weight: 5.3 kg
