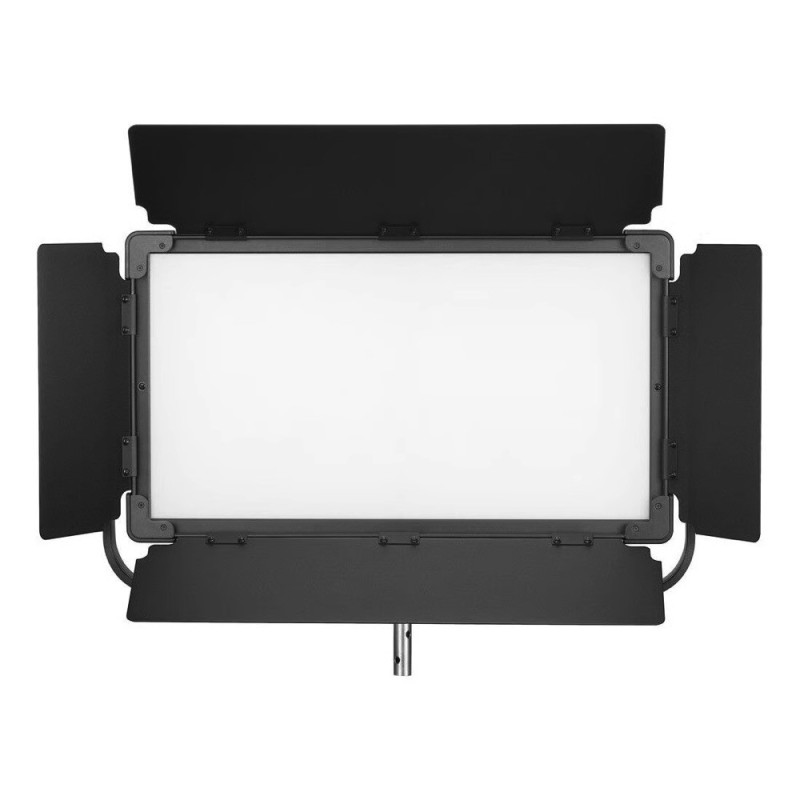

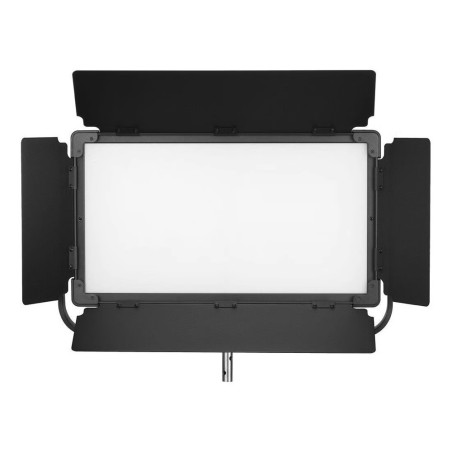

Godox P200BI Studio LED Light Panel
The Godox P200BI Studio LED Light Panel is a 200W bi-colour LED panel for studios, with CRI 96+ and TLCI 98+ for lifelike colours. You control it via DMX512, the 2.4GHz remote control or directly on the panel, and series power lets you feed up to 5 panels from one connection. The included 4-wing barndoors, made of non-reflective material, give you precise control over where the light falls.

Highlights

• 200W output, CRI 96+ and TLCI 98+ for lifelike colours
• Colour temperature adjustable from 3200K to 5600K, completely flicker-free
• Peak illumination of 4880 lux at 1 metre (at 5600K)
• Control via DMX512, 2.4GHz wireless (with separately available RC-AG6II) or on the panel itself
• All-metal, fanless housing with a large heat sink
• 360° rotating U-bracket, lightweight aluminium construction
• Series power connection for up to 5 panels

Light and colour
The combination of high-intensity LED chips and a diffusion panel gives soft, even lighting without flicker, peaking at 4880 lux at 1 metre at 5600K. You adjust colour temperature steplessly from 3200K to 5600K and brightness from 0% to 100%. With CRI 96+ and TLCI 98+, the panel renders colours and skin tones accurately, without needing correction afterwards.

Control
You control the panel via DMX512, the optional 2.4GHz RC-AG6II remote, or directly on the panel. That makes it easy to coordinate multiple lights on location.

Cooling and mounting
The all-metal housing with a large heat sink dissipates heat quickly without a fan, making it suitable for use alongside audio recording gear. The U-bracket rotates 360°, and the lightweight aluminium build makes the panel easy to mount and transport.

Power and accessories
Using the power cord, you power the unit individually or chain up to 5 panels in series, for fewer cables and a faster setup. The included 4-wing barndoors are made of non-reflective material, for precise control over where the light does and doesn't fall.

Characteristics

• Power: 200 W (max.)
• Power input: AC 100-240V, 50/60Hz
• Colour temperature: 3200K to 5600K
• Channels: 32 (1-32)
• Groups: 16 (0-9, A-F)
• ID: 1 to 99 / off
• Brightness range: 0% to 100% (0-255)
• CRI: average 96
• TLCI: average 98
• Control: DMX512, 2.4GHz wireless, on-panel control
• Working temperature: -20°C to 45°C
• Panel dimensions: 613 x 412 x 108 mm
• Weight: 6.4 kg
• Warranty: 2 years

In the box

• 1 x Godox P200BI Studio LED Light Panel
• 1 x U-type bracket
• 1 x Mounting adapter
• 1 x Safety cable (steel)
• 1 x XLR cable connector (female)
• 1 x XLR cable connector (male)
• 1 x AC power connector (male)
• 1 x AC power connector (female)
