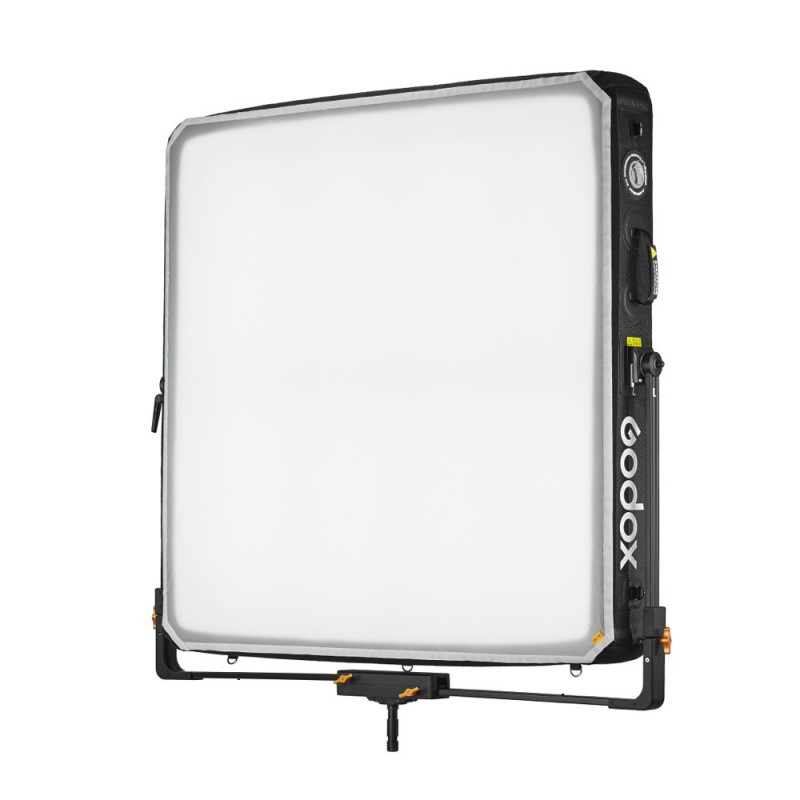

Godox KNOWLED AM800R 44K K1 Flexible Light
The Godox KNOWLED AM800R 44K K1 Flexible Light is an inflatable 800W full-color LED mat that delivers a soft, even 4'×4' light panel.

Highlights

• 800W full-color LED with a 1800K to 10000K CCT range
• ±100 GM adjustment with professional CCT, HSI and GEL modes
• High color rendering: CRI ≈96 and TLCI ≈98
• IP65 weather-resistant light body and controller
• Inflates in about 1 minute and holds its shape for up to 15 days
• Control via CRMX, DMX/RDM, Ethernet, Bluetooth and the KNOWLED App

Powerful full-color soft light
The AM800R delivers 800W of full-color output in a soft, even 4'×4' light panel. With a 1800K to 10000K CCT range, -100% to +100% GM adjustment and professional CCT, HSI and GEL modes, it gives you full control over high-saturation, cinematic soft light.

Detachable microstructure diffusion
Thanks to detachable microstructure diffusion fabrics, including D11-32, D11-32+ and D13-30+, the AM800R creates smooth, natural softness across multiple diffusion levels. Paired with the grid, you reduce spill and shape the beam with precision.

Flexible mounting
The AM800R supports floor-mounted setups, boom-arm mounting and truss-free rigging. The quick-mount design and foldable U-bracket with a 300° adjustment range allow fast setup and precise angle control on set.

Built for durability
From the carbon fiber backplate to the reinforced inflatable fabric, the AM800R is built for demanding productions. The backplate supports the flexible PCB to reduce deformation, while the rugged airframe resists scratches and abrasion. The light body and controller meet IP65 and are protected against rain and dust.

Every pro control you need
The AM800R supports all professional control methods: CRMX, DMX/RDM, Ethernet, the KNOWLED App and on-board control, with Bluetooth up to 60 meters for stable multi-light sync.

Characteristics

• Model: AM800R 44K
• Type: full-color LED inflatable mat light
• Power: 800W
• AC input: 110V-240V, 50/60Hz
• CCT range: 1800K-10000K
• GM adjustment: -100% ~ +100%
• Brightness range: 0.0% ~ 100.0%
• Dimming curves: Linear, S-curve, Exponential, Logarithmic
• FX modes: 12
• CRI: ≈96
• TLCI: ≈98
• Weather resistance: IP65
• Control methods: DMX/RDM, CRMX, Ethernet, Bluetooth, controller
• Bluetooth range: 60 m
• USB-A port: firmware upgrade / 5V 1.5A power supply
• Working temperature: -20°C ~ 45°C
• Dimension (without inflatable frame): 120 × 120 cm
• Controller dimension: 31.5 × 18 × 14 cm
• Net weight (without inflatable frame): 4.95 kg
• Controller weight: 6.40 kg
• Warranty: 2 year

Supplied accessories

• 1 x Godox KNOWLED AM800R 44K K1 Flexible Light
• 1 x Controller
• 1 x U-bracket
• 1 x Inflatable butterfly airframe
• 1 x Airframe repair kit
• 1 x Flight case
