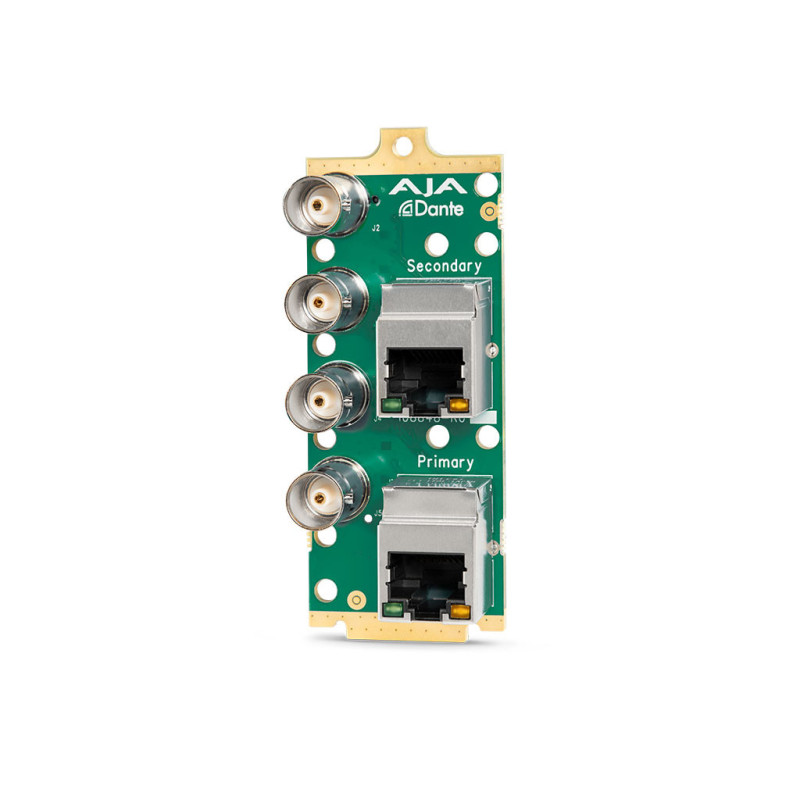

OG-DANTE-12GAM
openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.

Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.

A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards, provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.

Features
• Support for 12G/6G/3G-SDI audio embedding to- and from- the Dante audio ecosystem
• Dual, and independent 12G-SDI Input and Output ports, each supporting 16-audio channels, totaling 64-channels per card in a compact design
• 1x Primary and 1x Secondary Gigabit Ethernet ports for Dante network redundancy
• 64-channels of simultaneous SDI/Dante audio bridging per card
• DashBoard support for remote signal status and configuration
• Compatible with a range of Dante Software from Audinate including Dante Controller for routing and configuration choices
• High density and small form factor, enabling 10 cards to be utilized in a single openGear frame for up to 640-channels of SDI/Dante audio bridging
• Supported within OG-X-FR and OG3 openGear frames
• Hot-swap capable
• Industry-leading five year warranty
