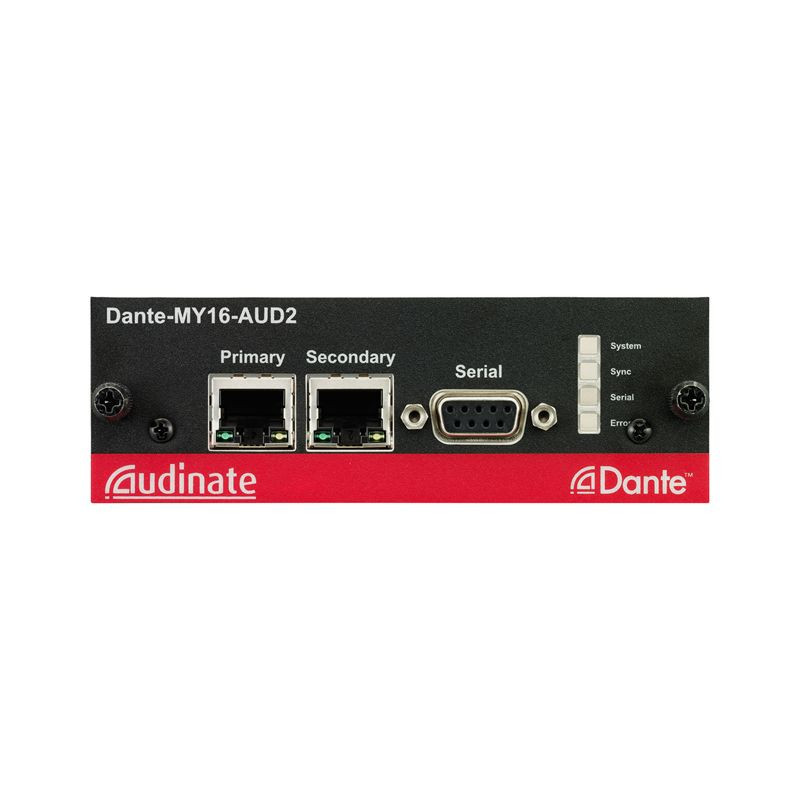

Yamaha 16-CH Digital In/Out Dante, supports 48, 96, 44.1 and 88.2kHz sample rates, can be daisy chained, can be PIN-locked and unlocked
- Supports sample rates of 44.1 and 88.2 kHz, in addition to the existing 48 and 96 kHz.
- Sample rate shifting can be used to synchronize audio with frame rate converted video.
- Dante-MY16-AUD2 cards can be daisy-chained together via the secondary Ethernet port.
- The Dante-MY16-AUD2 can be locked/unlocked with a PIN via the Dante controller.
- 2x RJ-45 connectors for Dante I/O, 1x 9-pin D-sub connector for RS232-C.
- Latency can be selected from 5 presets: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms.
- More than 16 audio channels can be transferred when using multiple Dante-MY16-AUD2 cards.
- Automatic recognition and setup for network devices. Device names can be specified as desired.
- Allows direct audio input and output from a PC or Mac without the need for an audio interface.
Audio channels: 16IN / 16OUT
Sample rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz
Sample rate pull-up/down: +4.1667, +0.1, -0.1, and - 4.0 %
Sample bit-depth: 16, 24 or 32-bit PCM
Network: 2 x Gigabit (1000Mbps) Ethernet RJ45 connectors
Redundancy: Glitch-free Dante audio redundancy using dual Ethernet networks (redundant mode)
Daisy chaining: Daisy chain multiple Dante-MY16-AUD2 cards together (switched mode)
HA Remote: Support for HA Remote capable Yamaha products
Expandable: Install up to four Dante-MY16-AUD2 cards in available MY16-compatible slots for up to 64x64 audio channels
