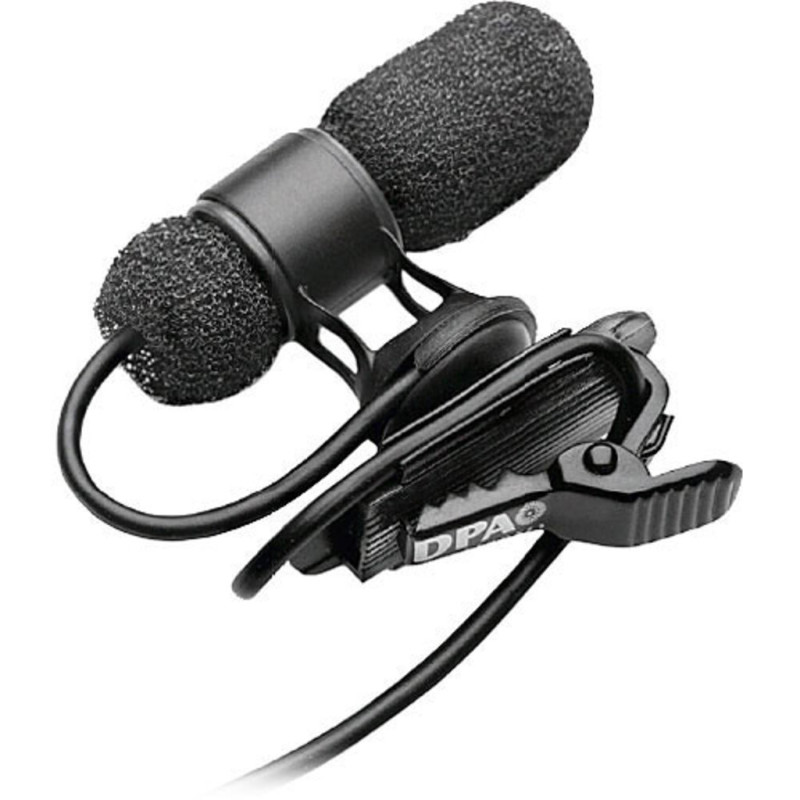

DPA Microphones 4080 CORE Cardioid Lavalier Microphone with TA4F Connector for Shure Transmitters (Black)

The black DPA 4080 CORE is a miniature cardioid lavalier microphone designed for use with wireless systems for live events, journalism, and broadcast applications.
The electret-condenser capsule delivers crisp, clear, and intelligible speech, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.
While small and visually unobtrusive, the 4080 uses DPA's CORE technology to deliver increased dynamic range and low self-noise for outstanding speech reproduction.
Engineered for chest placement, the mic is pre-EQ'd with a 4 dB presence boost in the 4 to 6 kHz range to ensure clarity.

The cardioid polar pattern focuses audio capture on the talent, picking up less audio from the sides and helping to reduce unwanted background sounds.
This pattern works best for forward-facing talent speaking in the direction of the mic, including broadcast personalities and presenters, it also helps to reduce feedback issues when monitors and PA systems are employed for sound reinforcement.
With an SPL rating of 134 dB, the 4080 is more than capable of handling most standard speakers and presenters.
The microphone is powered by 5 to 10V plug-in power from a wireless transmitter.
This version of the mic features a TA4F connector compatible with Shure wireless microphone transmitters.

Wired with TA4F Connector
Compatible Wireless Transmitters
- Shure: Works with Shure transmitters equipped with a TA4M connector, including the AD1, ADX1, AXT100TA4M, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, and ULXD1. Also supports Line 6 and TOA transmitters.

Microphone
__________________
Microphone Type: Lavalier
Sound Field: Mono
Element Type: 1x Electret Condenser
Polar Pattern: Cardioid

Performance
__________________
Frequency Range:
Cardioid Electret Condenser: 250 Hz to 17 kHz ±2 dB
Maximum SPL:
- 129 dB SPL Peak (Plug-In Power, 1% THD)
- 134 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity: 20 mV/Pa
Dynamic Range: 100 dB A-Weighted

Connectivity
__________________
Output Connector: 1x TA4F/Mini-XLR 4-Pin Female
Cable Length: 3.9' / 118.9 cm

Power
__________________
Power Sources: Plug-In Power
Operating Voltage: 5 to 10 V

Physical
__________________
Color: Black
Environmental Resistance: Dust/Water-Resistant to 3.28' / 1 m (IP58)
Dimensions: Ø: 0.2 x L: 1.2" / Ø: 5.7 x L: 30 mm
Weight: 0.5 oz / 15 g (Cable, with Mount)
