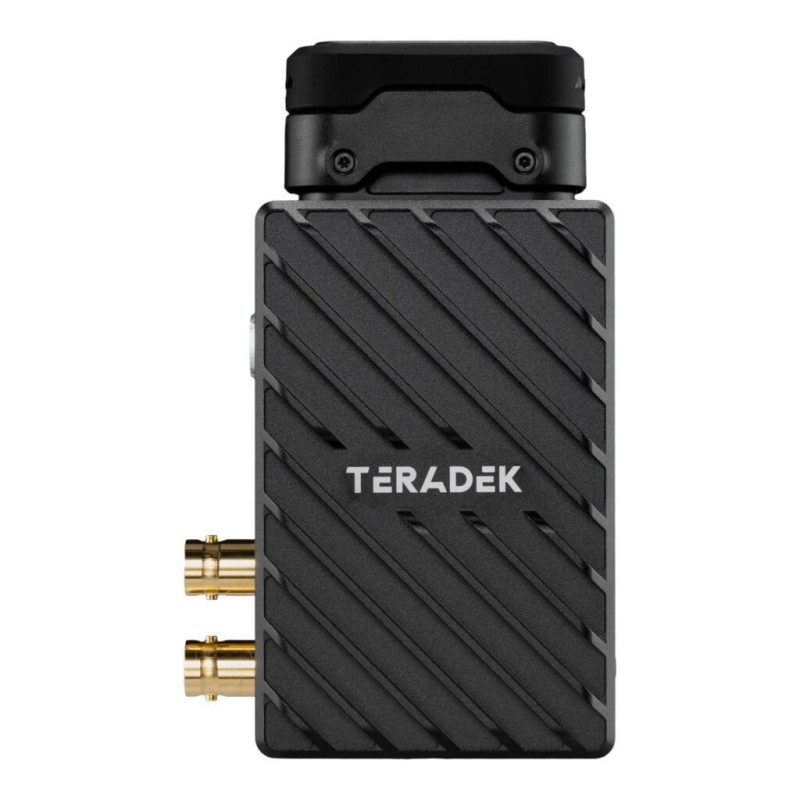

Teradek 3G-SDI/HDMI Wireless Transmitter with Internal Antennas - 10-2263-I

Transmit lossless HD video up at distances up to 750' with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek.
The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band.
This transmitter unit provides a powerful signal that can travel up to 750' line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.

Sleek Design with Internal Antennas
The antennas in this transmitter are all tucked inside, producing a sleek, compact form.
There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Transmits to up to Six Receivers
The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors.
Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum.
The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Cross-Compatibility
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Up to UHD 4K30 via HDMI
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video, input up to 1080p60 via SDI and output via an SDI loop out.
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut.
The wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

Display
_______________________
Panel Type: LCD

Inputs / Outputs
_______________________
Antenna I/O: No
Video I/O:
- 1x HDMI 1.4b Input
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Loop Output
Embedded Audio:
- HDMI: 2-Channel
- SDI
Audio I/O: No
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O: 1x Micro-USB Input
Encryption: 256-Bit AES

Wireless
_______________________
Wireless Range: 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt App
Cellular Support: No

Format Support
_______________________
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Wireless Video Compression: Uncompressed
Timecode Support: Yes

Power
_______________________
Input Power: 6 to 28 VDC
Power Consumption: 9 W

Mounting
_______________________
Mounting: 1x 1/4"-20 Female

Environmental
_______________________
Environmental Protection: No
Certifications: FCC-15, CAN, EU, IC, ICES
Operating Temperature: 32 to 72°F / 0 to 40°C

General
_______________________
Material of Construction: Aluminum
