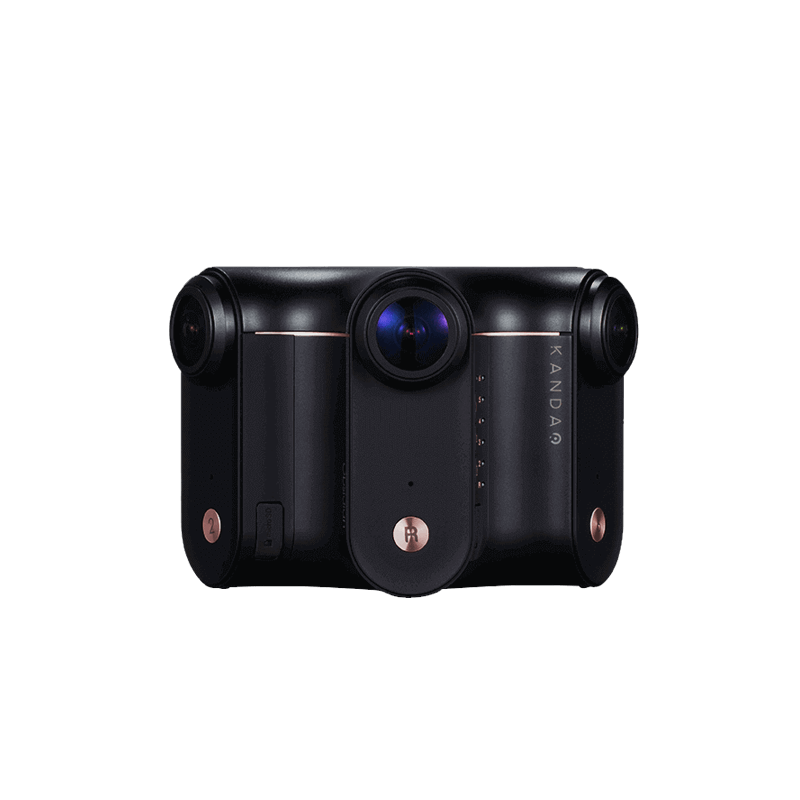

The KanDao Obsidian R edition is a 3D VR camera which produces 360° video in 8K x 8K @ 30fps and 4K x 4K @ 60fps respectively, making it ideal for capturing high-resolution shots. The Obsidian camera runs 6 imaging modules achieving pixel-level synchronization using high-quality fisheye lenses with a bright F 2.2 aperture.

The KanDao Obsidian camera comes with an overall software solution with rich functionalities, ranging from post-processing, editing, stitching, and video encoding to live streaming. The total solution supports industry-standard format and can be easily connected to your existing workflow, leveling the learning curve for new 3D 360 video producers, liberating you from The KanDao Obsidian camera comes with an overall software solution with rich functionalities, ranging from post-processing, editing, stitching, and video encoding to live streaming. The total solution supports industry-standard format and can be easily connected to your existing workflow, leveling the learning curve for new 3D 360 video producers, liberating you from the tediousness of the post-production and letting you focus on creativity.



8K 30fps 3D VR videos
4K 60fps 3D VR videos
8K 3D VR photos
f2.8 high quality fisheye lens
HDR high dynamic range in spherical image capturing

Stereoscopic Panorama,
True Virtual Reality

· A minimalistic design - six lenses, human visual
system inspired
· Deep learning - based stitching algorithm, a beast of
quality and speed
· Natural and comfortable, recording human
experience in total VR(stereoscopic parallax)

Only a 3D 360° panorama video can give a true sense of immersion, a key to bringing the virtual reality world to its audience. KanDao Obsidian utilizes a deep-learning stitching method, automatically generating high quality stereoscopic panoramas.

Specification Obsidian R
Image Sensor 6* Sony 12M Back-illuminated CMOS sensor
Stitched output resolution 7680*7680 pixel (Maximum)
Sync/Freq 4K @60fps, 8K@30fps
Spherical Resolution 4K*4K @60fps, 8K *8K@30fps post stitching video output. 8K*8K VR photo
Single Lens Res. 8K*8K 3800*3000, 4K*4K 1900*1500
Lens 6 * F2.8 Fisheye lens (185°)
Focal length 1.98MM
ISO 100~3200
Dynamic Range 10 stops( video), 12stops (Photo)
Frame rate 60 fps@4K*4K, 30fps @8K*8K
Sync Kandao Syne Technology at line syne level between all six sensors
Auto Exposure Harmonised auto exposure
While Balance AWB( automatic White Balance) co-ordinated with all six cameras for harmonsised images
Audio/Microphone Specification Internal 6 channel,External Stereo Line in Spatial Audio support( Zoom H2n synchronisation)
Stabilisation 9-DoF (degrees of freedom)motion sensor
Time Lapse Default 10 seconds, adjustable
Remote Control By WiFi up to 20 metres throught Obsidian App, By Bluetooth( ready in Oct.)


Storage/Output
Output Format Video-Mov, Photo-JPG/DNG
Video Format Monoscopic/Stereoscopic Equirectangular/Cubemap projection
Photo Format JPG/DNG
Recording Media 6* Micro SD/SDHC/SDXC cards, U3 (USH-I) are recommended
Output Compression H.264/H.265

Connectivity
ISP HiSilicom Ultra HD H.264/H.265 SoC
Camera 1 Gbps Ethernet Input/Output

Power
Consumption 26 Watts (Maximum)
Power Supply 12V Supply/Power over Ethernet/Battery
Battery 2* Canon LP-E6N Lithium lion 10*6*3cm 45g

Physical features
Body Material Aluminium Magnesium Alloy
Dimensions 145mm diameter * 93 mm height( camera)
Weight 1.1 kg
Camera Mount 3/8 & 1/4 UNC Standard tripod mount on bottom
Working temp. 0 - 30c
Storage Tem -40-80c
Storage Humidity 5-90% RH
Working Humidity 10-90% RH
