Blackmagic HyperDeck Shuttle 4K Pro touchscreen for recording H.265, ProRes and DNx files in all SD, HD and Ultra HD standards up to 2160p60.

* Includes 10G Ethernet, scopes, internal network storage, 12G-SDI and HDMI connections.

HyperDeck Shuttle is a desktop recorder and player that not only records masters but also plays clips!
The large seek knob is perfect for scrolling through files and finding the clip you want to play.
Depending on the model, it supports ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p and 2160p video standards.
It even has a built in teleprompter!
Some models have 12G-SDI and HDMI connections, so you can connect to both switchers and cameras.
Plus, it records to SD cards, UHS-II cards or USB-C drives.
The HyperDeck Shuttle 4K Pro model features 10G Ethernet and internal M.2 storage, so you can share files across your local network or record to network storage.

Professional broadcast deck
HyperDeck Shuttle is designed specifically for the desktop, so the front panel is easy to use with just one hand!
The beveled profile lets you leave your hand on the dial and use your fingertips to operate the controls.
The machined metal search dial with natural inertia and a soft-touch rubber coating makes scrolling fast.
It's perfect for searching through a large amount of files for what you need.

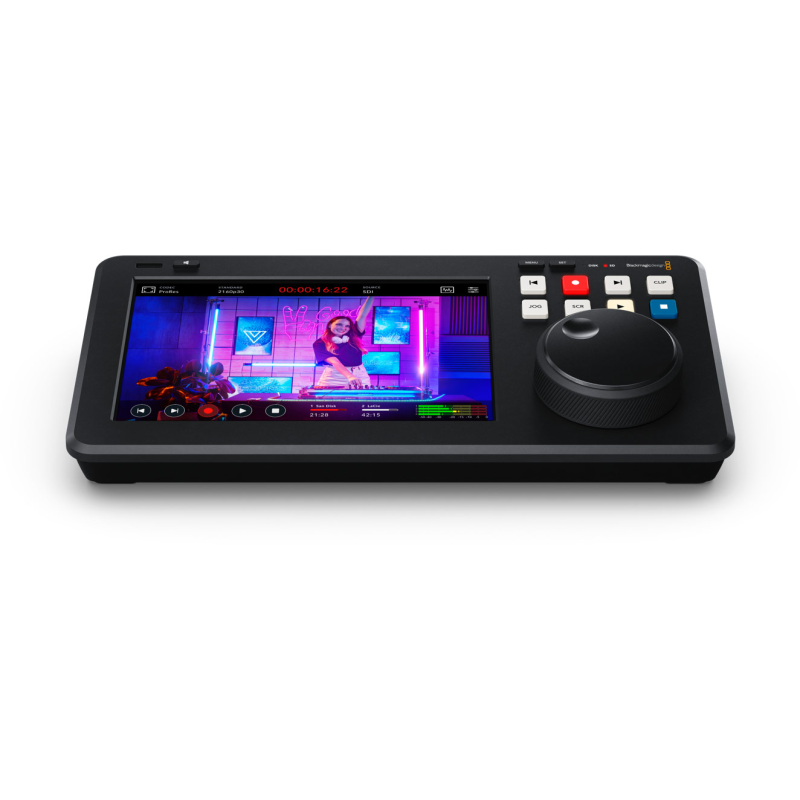

The HyperDeck Shuttle 4K Pro model features a large 7" LCD screen for live monitoring with a heads up display.
It also features extensive menus for managing all of the device's settings, and the rear panel features connections for audio, video and network.

Built-in 7" touch screen
The HyperDeck Shuttle 4K Pro model features an innovative LCD touch screen interface with interactive control, built-in monitoring and settings management.
The large 7" HDR display features buttons for play, pause and record video, as well as a small playback timeline for navigating clips. It also includes a heads up display so you can see important information at a glance such as timecode, file status, audio meters, touchscreen enabled scopes, focus assist functions and an RGB exposure histogram.
You can also change settings on the HyperDeck Shuttle 4K Pro using the on-screen menus and even load and save 3D LUTs.

SD and UHS-II Cards
HyperDeck Shuttle works with other HyperDeck models because it supports SD and UHS-II card recording.
SD cards are inexpensive and small, making them a great option for broadcast files.
You can also record to external USB drives that are easy to disconnect and transport.
If you use USB drives, HyperDeck Shuttle lets you record to multiple drives for uninterrupted recording!
In H.264, files are incredibly small, allowing for very long recordings on low-cost cards.
That means you can record up to 157 hours of H.264 footage at 1080p59 on a 1TB card, that's over 6 days of HD!

Record to external USB-C drives
If you need to record to external media, use the USB-C expansion port to connect a flash drive.
USB-C flash drives have unlimited storage because they are physically larger than SD cards and SSDs.
You can also physically move the disk to an editing station, eliminating the need to copy files before post production.
Simply move the disk to your computer and start editing.
By adding Blackmagic MultiDock 10G, which has 4 SSD slots, HyperDeck Shuttle can also work with SSDs!
External disk management options are available in the menu.

ProRes, DNx, H.264 and H.265 industry standard files
HyperDeck Shuttle HD supports the most popular codecs today. You get broadcast quality DNx and ProRes files, and you can save space by saving in H.264 when recording in NTSC, PAL, 720p, 1080p and even 1080i interlaced formats.
The HyperDeck Shuttle 4K Pro model also supports H.265 recording and playback.
With compression ratios from 60:1 to 285:1, you get ultra-small files with true broadcast quality.
You can choose between uncompressed PCM and AAC audio for uploading to YouTube.
HyperDeck Shuttle supports ExFAT formatting on Windows and HFS+ on Mac, so you can open and read your discs on both platforms.
You can even record long events into a single video file!

Connections
SDI Video Inputs: 1
SDI Loop Outputs: 1
SDI Video Outputs: 2
SDI Monitoring Outputs: 1
SDI Transmission: 270Mb, 1.5G, 3G, 6G, 12G
HDMI 2.0 Video Inputs: 1
HDMI 2.0 Video Outputs: 1
HDMI Monitoring Outputs: 1
Built-in Speaker: Mono
Audio Output: 1 x 6.35mm Headphone Jack
Monitor: 7" LCD
Reference Input:
- 1 x BNC In
- Tri-Sync or Black Burst
Reference Outputs: 1 x BNC Out
SDI Audio Inputs: 64 channels of embedded audio
SDI Audio Outputs: 64 channels of embedded audio
HDMI Audio Inputs: 8 channels of embedded audio
HDMI Audio Outputs: 8 channels of integrated audio
Remote Control: 1 x RS-422 In
Setup: Via UI on HDMI output or Blackmagic HyperDeck Ethernet Protocol
External Recording: 1 x USB-C 3.1 Gen 1 (5Gb/s max) for recording to external disk
Computer Interface: 1 x USB-C for software updates

Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI video standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI standard compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M.
Compatible SDI Metadata: 24 bit (TV Standard), 48 kHz (sampling rate)
Compatible HDMI Formats:
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio Sampling: 24 bit (TV Standard), 48 kHz (sampling rate)
Video Sampling: 4:2:2 YUV
Color Accuracy:
- REC 601, REC 709, REC 2020
- 33-point 3D LUT applicable to SDI monitoring output
HDR Compatibility: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi-rate compatibility: SD, HD, 6G-SDI and 12G-SDI auto-detected

Media
Cache Recording: Optional M.2 PCIe NVMe card slot for cache recording up to 16Gb/s. Compatible with 60mm, 80mm, 110mm
Storage:
- 1 x SD card slot.
- 1 x USB-C 3.1 Gen 1 expansion port for external recording in SD, HD, 2K DCI, Ultra HD and 4K DCI
Memory Media: UHS I and UHS II SD cards
Formatting: ExFAT (Windows/Mac) or HFS+ (Mac)

Control
Built-in control panel: Built-in capacitive LCD touchscreen with settings and menu controls. 11 transport buttons and device control with dial
External control: 11 transport buttons and device control with dial

Teleprompter
Multi-rate compatibility: Outputs in 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p. Preset at highest frame rate
Supported File Formats: Rich Text Format (.rtf) with support for formatting most elements Text Files (.txt)

Software
Software Included:
- Blackmagic OS
- Blackmagic HyperDeck Setup
Internal Software Update: Loads at startup or with Blackmagic HyperDeck Setup via USB

Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later
Windows 10 and 11

Power Requirements
Power: 1 x DC 12V 5.5mm barrel with locking mechanism for external sources or batteries
Power Consumption: 60W max

Environmental
Operating Temperature: 0° to 40° C
Storage Temperature: -20° to 60° C
Humidity relative: 0% to 90% non-condensing
