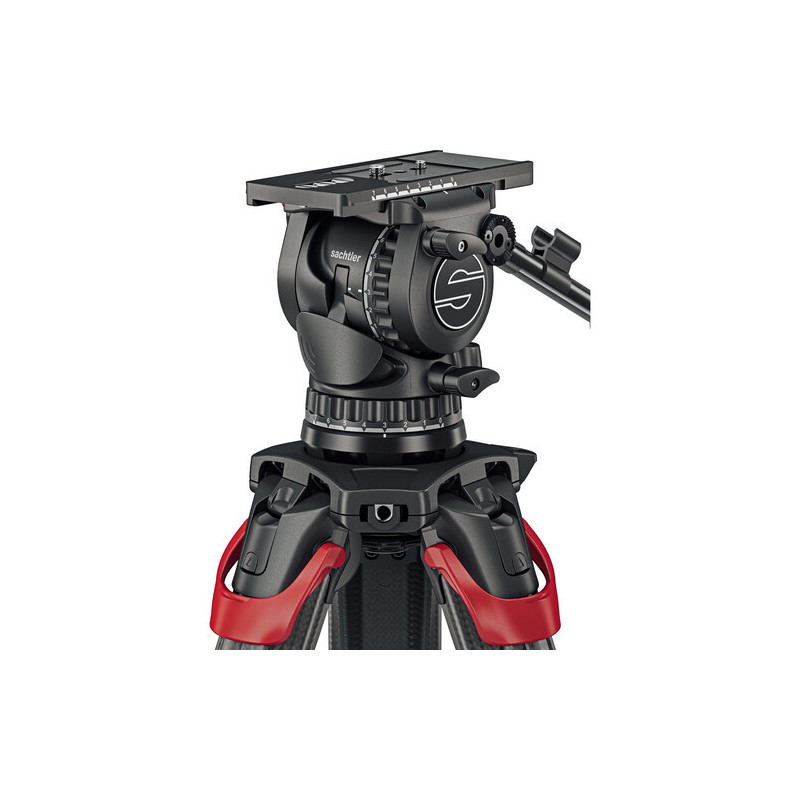

Enjoy creating smooth pan and tilt while being able to quickly move the video head from tripod to tripod with the Touch & Go Sachtler aktiv12T fluid head with SpeedLevel and 7-step drag. Leverage innovative SpeedLevel technology to provide near-instant mounting and leveling of your camera on nearly any Sachtler 100mm bowl tripod. The SpeedLevel Clamp and Pin System saves valuable time leveling camera equipment by eliminating the need to screw in a mounting knob. Designed for larger DSLRs, mirrorless, and cine-style digital cameras, the aktiv12T supports rigs weighing from 0 to 30.9 lbs. This fluid head features 15 levels of counterweight and seven levels of pan and tilt drag adjustment, as well as zero settings for both balance and resistance.

SpeedLevel technology replaces the traditional head screw and anchor design with a sturdy clamp integrated into the head cup and a pin component that attaches to the tripod bowl or other mounting platforms, such as a slider. Just grab the large lever on the head and pull it up to release the clamp, then press it down to lock the head in place. Partial lifting of the lever allows you to level the head quickly and easily. The PrismBubble integrated leveling system is pressed once to illuminate the bubble level or twice to illuminate both the bubble level and drag settings - an advantage when working in darker environments. The bubble level also has a built-in prism, which allows you to easily level the head when the legs are set at a maximum height or at an awkward angle.

Compatibility
The aktiv12T fluid head is compatible with all Sachtler tripod legs with 100mm bowl base, except the HotPod
Features
SpeedLevel technology
Use the large built-in lever to quickly mount, level and lock the head on the tripod or other base; lift to release, lift partially to level and press to lock the head firmly in place
Speed change base
Centered around a metal pin, the SpeedSwap base clips onto almost any Sachtler tripod with 100mm bowl or the separately available sliding base; additional bases can be purchased separately to fit a second tripod, cart or slider
Bubble level prism
The illuminated PrismBubble is visible from any height or angle, saving time when leveling to higher or lower positions
Fluid head with 30.9 lb capacity
This 30.9lb fluid head is suitable for larger DSLRs, mirrorless MFT cameras, and professional cine digital cameras
Counterweight and stepped drive
15 counterweight passes and seven pan and drag passes plus zero settings for free spins and tilts
Touch & Go cymbal
Touch & Go platform provides quick camera mounting with 2.8 "of travel to balance your rig and 1/4" -20 and 3/8 "-16 camera screws

Camera plate
Camera Plate Features: Quick Release Sliding Balance Plate
Camera Plate Type: Touch & Go Plate 16
Camera mounting screw
1 x 1/4 "-20 male
1 x 3/8 "-16 male
Security lock: yes
Head
Base support: 100mm half ball
Counterbalance: Incremental 15 steps plus 0
Pot handle fittings: 2 rosettes
Length of the handle of the pan included: 17.55 "/ 44.58 cm
1 x illuminated spirit level
Pan and tilt
Drag the control
Overview: 7 stepped steps plus 0
Inclination: 7 stepped steps plus 0
Type of drive: Fluid
Vertical inclination: From + 90 ° to -70 °
Pan range: 360 °
Independent Pan Lock: Yes
Independent tilt lock: yes
General
Load capacity: 0 to 30.9 lbs / 0 to 14 kg
operating temperature: -40 to 140 ° F / -40 to 60 ° C
The weight: 7.3 lbs / 3.3 kg
Packaging information
Package Weight: 10.87lbs
Box Dimensions: 23.1 x 10.5 x 9.8 "
