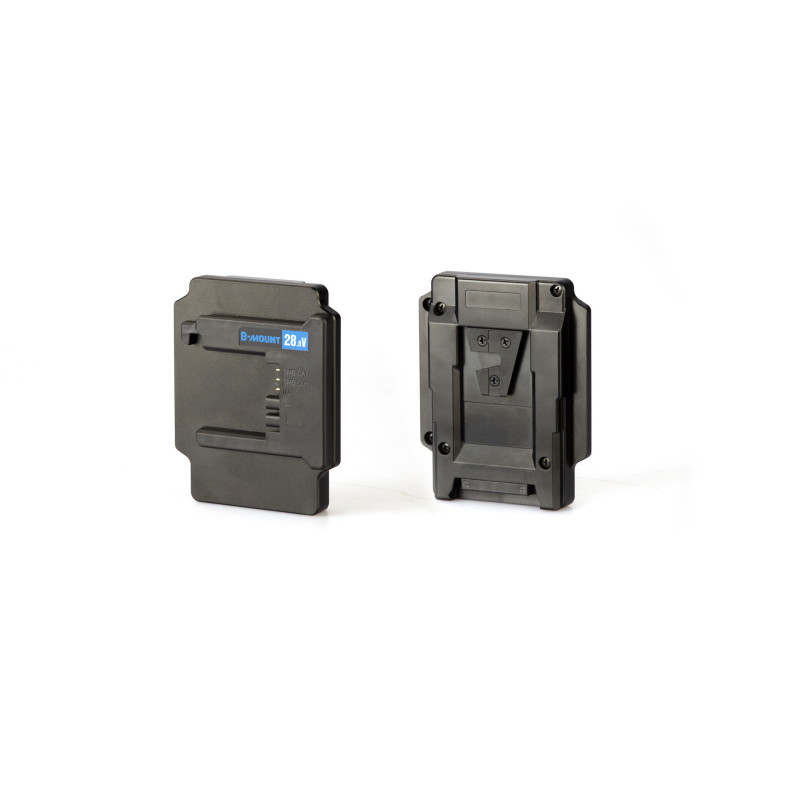

Swit B-mount battery to V-mount 28.8V Plate - KA-S21B

° B-mount to V-mount 28.8V
KA-S21B conversion plate is to use the B-mount battery to power V-mount cameras or other devices.
The ID pin of the B-mount plate is 28.8V, so the V-mount output voltage is 21.6-33.6V range. Please make sure the V-mount cameras or devices support up to 33.6V input.

° RED V-Raptor XL Power
The RED V-Raptor XL needs 28.8V high voltage power input to enable the various DC out sockets on the camera.
Use B-mount batteries and the KA-S21B plate will power RED V-Raptor XL at 21.6-33.6V, to active the full functions of the camera, and avoid misuse on other cameras.

° Power RED XL by B-mount Batteries
Use SWIT B-mount batteries, including HB-A290B, BIVO-98, BIVO-160, BIVO-200, BIVO-290, and the KA-S21B plate, to power RED V-Raptor XL at 21.6-33.6V high voltage.

Battery side: B-mount
Camera side: V-mount
Input/Output voltage: 28.8V (21.6-33.6V)
Compatible batteries:
HB-A290B, BIVO-98, BIVO-160/200, BIVO-290
