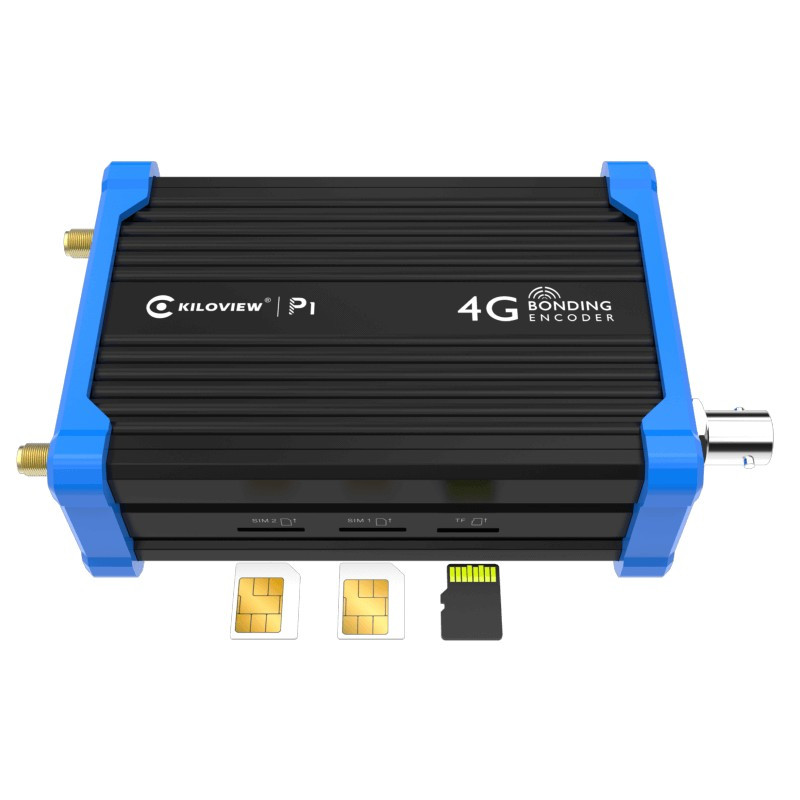

P1 4G Bonding SDI Video Encoder for Outdoor Live broadcast
1 012,80 €
TTC
HD/3G-SI Wireless 4G-LTE Bonding Video Encoder
Video encoder is a professional high-end encoding device specially designed for mobile applications.
- It can encode SDI video source , then transmit it to the internet live broadcast platforms through multi-channels 4G-LTE network (bonding).
- Also supports wired/wifi network transmission.
- P1 encoder has approved by CE,FCC,ISO,etc.
Garanties Constructeur France - Europe
Garantie constructeur France - Europe
Information livraison
Livraison France métropolitaine offerte à partir de 100 Euros TTC
Garantie / SAV / Retour
Paiements Sécurisés
Paiement CB 1 à 4 fois, Virement, Mandat Administratif
P1 4G Bonding SDI Video Encoder for Outdoor Live broadcast
Anytime Anywhere
Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI or HDMI video source to H.264 IP streams and then transmit it to the internet live broadcast platforms through a multi-channel 4G-LTE network (bonding). It also supports wired/wifi network transmission.
- P1 supports SDI input
- P2 supports HDMI input
Parameters
| Model No. | P1, P2 |
|---|---|
| Input | SDI (P1): HDMI (P2) |
| Transmission mode | 4G-LTE, WIFI (2.4/5G dual band), Ethernet by USB expansion |
| 4G bonding capacity | 4 channels of 4G bonding (2 CH internal+ 2 CH external) |
| Video resolution | Up to 1080P60Hz: 1080p23.98/24/25/29.97/30 1080p50/59.94/60 1080i50/59.94/60 720p23.98/24/25/29.97/30 720p50/59.94/60 |
| Video encoding | H.264/AVC, Motion-JPEG |
| Audio encoding | AAC/G.711 |
| Encoding latency | <67ms |
| Media protocol | RTMP/RTSP/SRT/RTP/HLS/TS over UDP, custom for SIP |
| Graphic overlay | User-defined text, image overlay |
| Recording | TF card slot/hard disk by USB expansion for local recording and NAS network storage |
| Management | Android APP/Web |
| Hot shoe | Removable |
| Battery capacity | 3.7V 6800mAh (29.6Wh) |
| Power supply | DC 12V 1A |
| Power consumption | 6.5w |
| Operating temperature | -20~45℃ |
| Dimension | 115*75*35mm (4.53”*2.95”*1.38”) |
| Weight | 400g (14 oz) |
Quick Comparison of our Encoders
| Product Type | Model No. | Input Interface | Network Connections | Resolution | Remark(s) |
|---|---|---|---|---|---|
| H.264 4G Encoder | P1 | 3G-SDI | 4G/WiFi/Ethernet/Satellite | 1080P60 | Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities |
| P2 | HD HDMI | 4G/WiFi/Ethernet/Satellite | 1080P60 | Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities | |
| Rackmount Codec | 1U-1/2/3/4 | 3G-SDI +HDMI | Ethernet/Satellite | 1080P60 | Mixed Insertion of 1-4 Channels of Codec Modules, Dual Power |
| 3U-1/8/16 | 3G-SDI +HDMI | Ethernet/Satellite | 1080P60 | Mixed Insertion of 8/16 Channels of Codec Modules, Dual Power | |
| H.264 Wireless Encoder | G1 | 3G-SDI | WiFi/Ethernet/USB Extended 4G/Satellite | 1080P60 | |
| G2 | HD HDMI | WiFi/Ethernet/USB Extended 4G/Satellite | 1080P60 | ||
| H.264 Wired Encoder | E1 | 3G-SDI | Ethernet/Satellite | 1080P60 | |
| E2 | HDMI | Ethernet/Satellite | 1080P60 | ||
| M2 | VGA+HDMI | Ethernet/Satellite | 1080P60 |
