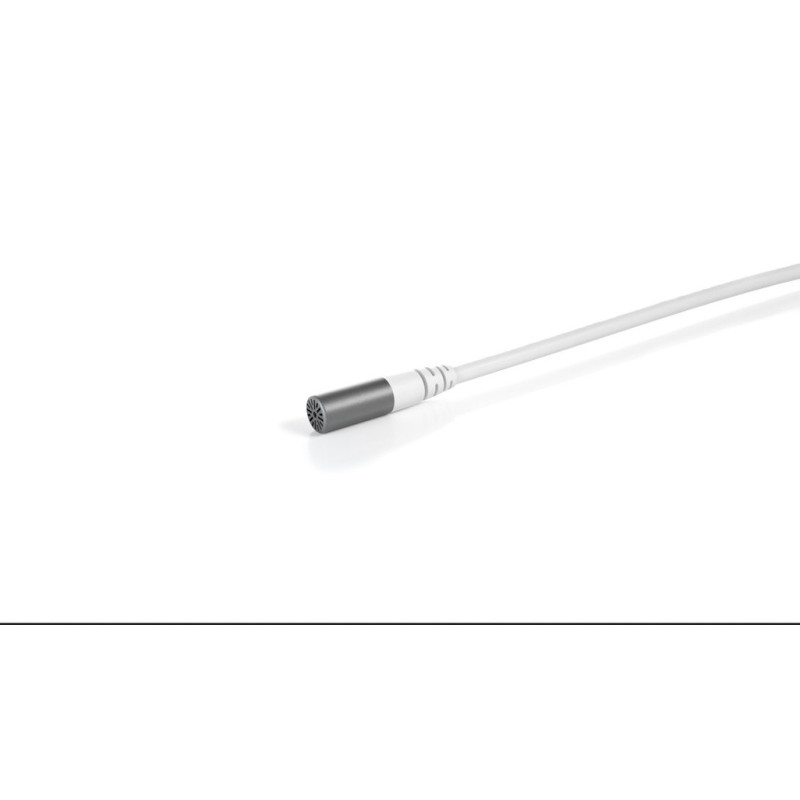

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.
Sound Pressure Level (SPL)
Normal SPL (6060/4060/4160/4660)
Color White
MicroLock connector

Amazing 3 mm CORE capsule technology
Renowned DPA sound in a 60% smaller package
Stainless steel, PVD-coated mic housing
Modular adapter system fits most professional wireless systems


Specifications
Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Effective frequency response
20 Hz - 20 kHz
Frequency range, ±2 dB
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
20 mV/Pa, -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 24 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 1%
123 dB SPL RMS, 126 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated output impedance
From MicroDot: 30 - 40 O. From DAD6001-BC: 100 O
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
Connector
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color
Black or beige
Weight
8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter
3 mm (0.12 in)
Cable length
1.8 m (5.9 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
