Swit VANGO-100 | Slim and Natural-Born-Soft 2:1 professional 100W RGBW LED Panel Light, 2.1cm ultra slim, SWIT patent, V-Mount, DMX&APP

- 180pcs RGB + 300pcs White SMD-LEDs
- Edge mounted LEDs, 21mm ultra slim
- No fan, No noise
- 2:1 size, 100W power, 2200Lux @ 1meter
- Time-Division drive tech, ultra bright color light
- CCT/HSI/RGB/CIE/GEL/EFF color modes
- Built-in 20x Rosco and 20x LEE Gels
- 2800K-10000K, G/M±1.00 adjustment
- CRI Ra 96, TLCI 93
- On-board 3.5-inch color LCD visualized color pick
- DMX512 3bit/6bit/7bit color control
- DC 11-34V wide input voltage
- On-board V-mount or Gold mount battery plate
- IOS/Android APP bluetooth control
- With 4-leaf barn door and optional 40° honeycomb

100W Ultra Slim RGBW Panel
VANGO-100, the slim portable size 100W RGBW panel with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.

21mm Ultra Slim and Soft
With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100 has an ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode.
That' s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light.
The 100W VANGO-100 color light intensity equals to a regular 300W RGB color light intensity.

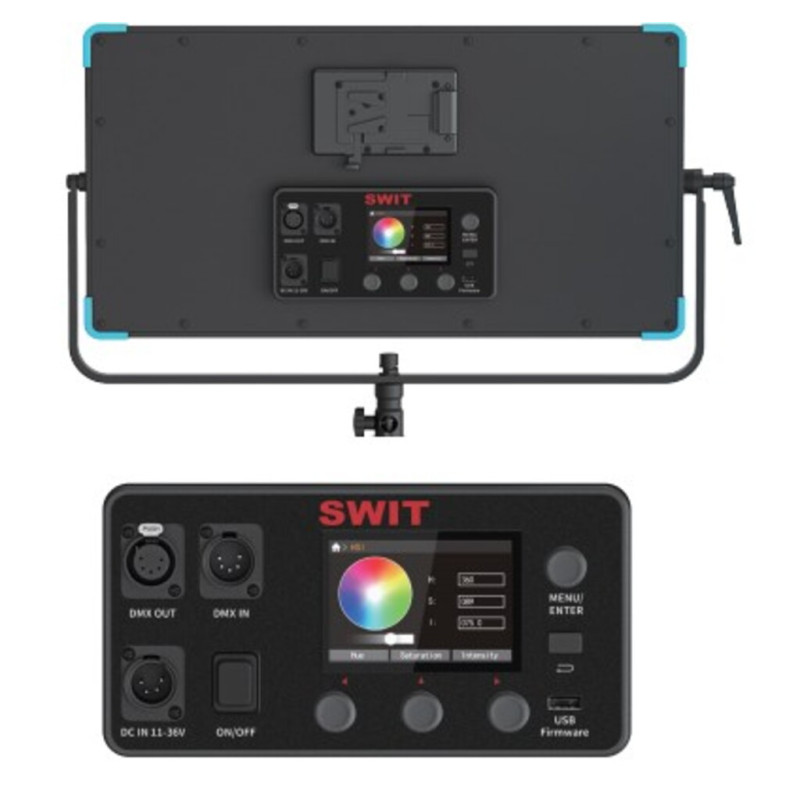

Control Panel
VANGO-100 rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking.
The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

Bluetooth APP Control
Download "SWIT Console" APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

Illuminance: 2200Lux @ 1m
Beam angle: 65°
Color Temperature: 2800K~10000K, G/M±1.00
CRI: 96
TLCI: 93
Power: 100W
DMX: DMX512, 5pin XLR IN & OUT
USB: USB-A power out & firmware update
Input voltage: 4pin XLR, DC 11V~34V IN
Dimension: 580×313×21mm
Lighting area: 522×255mm
Weight: Net 6kg with barndoor, With package 9.46kg
