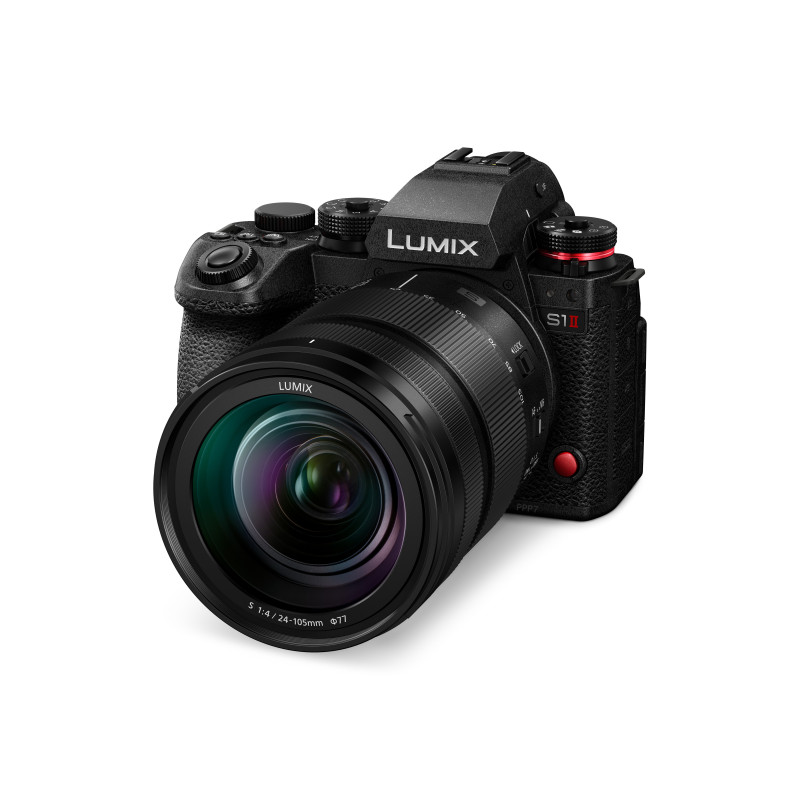

LUMIX S1II DC-S1M2M avec 24-105mm f/4 S-R24105E

*The LUMIX S1II is carefully designed to meet the needs of professional photographers and videographers.
It features a newly developed 24.1MP partially stacked full-frame CMOS image sensor and is supported by a newly developed Venus Engine.
This synergy enables faster readout and processing speeds, facilitating high frame rate recording in 4K 120p and 5.8K 60p formats.
It also excels in dynamic range with Dynamic Range Boost mode, achieving up to 15 stops in V-Log when shooting at frame rates below 30p.
For photography, high-speed continuous shooting of up to 70 frames per second with SH / SH pre-shot mode of up to 1.5 seconds ensures that fleeting moments are captured.

The LUMIX S1II increases flexibility and facilitates content creation by streamlining workflows.
The highly acclaimed Open Gate functionality now supports formats higher than 6K 30p, enabling 5.1K 60p, thereby expanding creative opportunities for users.
A future firmware update will include additional frame marker displays to further enhance creative flexibility.

- Employs a newly developed 24.1MP full-frame partially stacked CMOS image sensor.
- Supports LUMIX's pioneering 5.1K 60p high-speed recording, as well as advanced formats such as 4K 120p and 5.8K 60p for optimized performance.
- Offers LUMIX's first 15-stop dynamic range video recording in V-Log when using frame rates lower than 30p.
- High-resolution continuous shooting, offering up to 70 fps with the electronic shutter in "SH/SH PRE" mode, and an extended "H+ (High Speed Plus)" continuous shooting mode of approximately 10 fps with a mechanical shutter, enabling a smooth, blackout-free photographic experience.
- Addition of new AF recognition for 'Urban Sports' that accurately captures dynamic movements such as breakdancing, skateboarding and parkour.
- Advanced 8.0-stop In-body Image Stabilization (B.I.S.) and innovative E.I.S. video distortion correction system, which stabilizes the shooting angle while maintaining the entire field of view.
- ARRI LogC3 available for the S series using the DMW-SFU3A software update code (sold separately).
- Supports internal recording of Apple ProRes RAW HQ / ProRes RAW at 5.8K 30p / C4K 60p to a Type-B Cfexpress card.
- Improved real-time Phase Hybrid AF recognition, with improved eye and face detection capabilities and high-precision AI-supported people tracking.

Image Sensor
Lens mount: L-Mount
Type: 35mm full-frame (35.8 x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels: 24.2 megapixels / 25.3 megapixels
AR (Anti Reflection) coating: Yes
Aspect ratio / Color filter: 3:2 / Primary color filter
Dut reduction system: Image sensor shift type
Shutter Behavior at Power Off: ON/OFF

Still Image
Recording file format: JPEG (DCF, Exif 3.0), RAW, HEIF
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Image quality: Fine, Standard
HLG Photo: Yes
Color space: sRGB, AdobeRGB

Viewfinder
Type: OLED Live View Finder
Pixels: Approx. 5.76 million dots
Field of view / Magnification: Approx. 100% / Approx. 0.78x with 50mm lens at infinity, -1.0m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment: Approx. 212mm at ininity, -1.0m-1 / -4.0 - +2.0 (dpt)
Eye sensor: Yes
Display speed: 120fps* / 60fps *During live view in photo recording mode

Rear Monitor
Type: TFT LCD monitor with static touch control
Monitor size: Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels: Approx. 1.84 million dots
Field of view: Approx. 100%

Focus
Type: Phase Detectopm AF system (779-point) / Contrast AF system (315-area)
DFD technology: Yes
Focus mode: AFS (Single) / AFC (Continuous) / MF
AF mode: Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to swith between Human / Animal / Car / Motorcycle/Bike / Train etc..
AF detective range: EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light: Yes
AF lock: Set the Fn button in custom menu to AF lock
Focus ring control: Nonlinear / Linear (90°/120°/150°/180°/210°/240°/270°/300°/330°/360°/720°/1080°/Maximum) Direction of fing rotation: Forward and reverse selectable

Flash
Flash type: Sold separately
Synchronization speed: Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode: Auto / Auto/Red-eye Reduction / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off
Flash output adjustment: 1/3EV step ±3EV
Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L [sold separately]), Wireless Channel: 1ch/2ch/3ch/4ch

Zoom Function
Hybrid zoom: Still image / Motion picture
Crop zoom: Still image / Motion picture

Motion picture function
Time lapse shot: Yes
Stop motion animation: Yes
Live cropping: Yes
SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shitter Duration/dB
Luminance level:
- 8-bit: 0-255 / 16-235 / 16-255
- 10-bit: 0-1023 / 64-940 / 64-1023
Master pedestal level: 31 steps
Color bars / Test tone: Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist: Monitor / HDMI
HLG view assist: Monitor (ODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2/ OFF)
Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
False Color: Yes
Wave form monitor / Vectorscope: Selectable
Knee control: Yes (in Like709 mode)
Ohter functions: Red REC Frame Indicator, Streaming Blue Frame Indicator

Power
Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16 Wh) (bundled) , USB power supply, USB power chargin, USB power delivery
Battery life (CIPA standard):
- When using Cfexpress Card: Approx. 370 images (rear monitor), 330 images (LVF), 1.050 images (Power Save LVF mode) with S-R24105/DMW-BLK22
- When using SD memory card: Approx. 380 images (rear monitor), 340 images (LVF), 1.200 images (Power Save LVF mode) with S-R24105/DMW-BLK22
Continuous recordable time (motion picture):
- When using Cfexpress Card: MP4 [4K/60p (FULL)]: Approx. 90 min with S-R24105, MP4 [FHD/30p (FULL)]: Approx. 110 min with S-R24105
- When using SD memory card: MP4 [4K/60p (FULL)] Approx. 100 min with S-R24105, MP4 [FHD/30p (FULL)] Approx. 120 min with S-R24105
Actual recordable time (Motion picture):
- When using Cfexpress Card: MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105, P4 [FHD/30p (FULL)]: Approx. 60 min with S-R24105
- When using SD memory card: MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105, MP4 [FHD/30p (FULL)*: Approx. 60 min with S-R24105
Battery grip: DMW-BG2 (sold separately)

General
Dimensions:
- Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body onlu, excluding protrusions)
- Approx. 143.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions)
Weight:
- Aprrox. 795.5 g / 1.75 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x1) (excluding body cap)
- Approx. 712.5 g / 1.57 lb (Body, Hot Shoe Cover) (excluding body cap)
