PT30X-SE-WH-G3

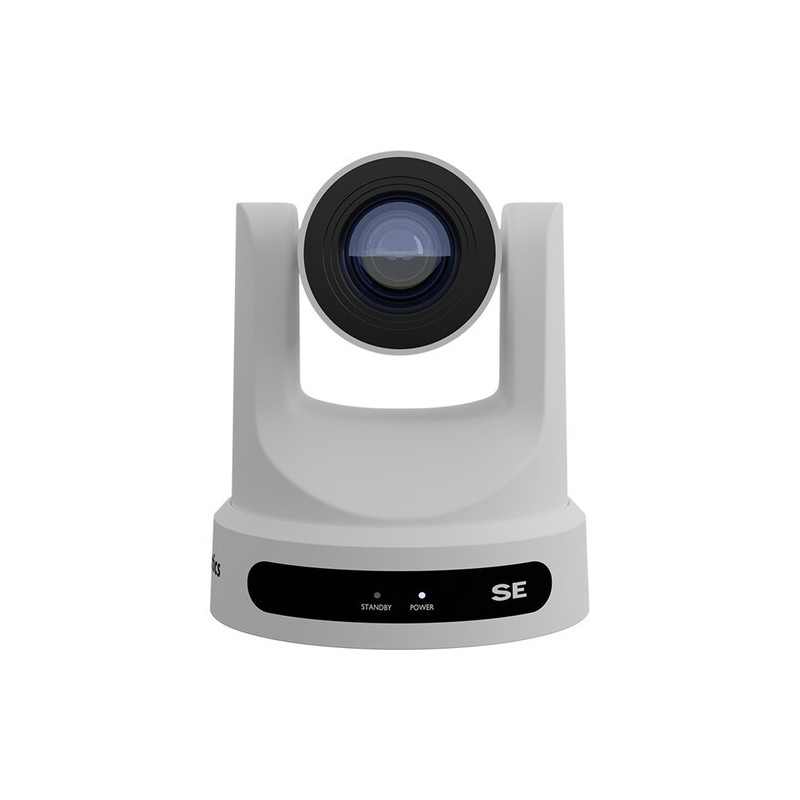

PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)

The Move SE camera captures resolutions up to 1080p60 IP, HDMI, USB-C, and 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator.
It features wide dynamic range, 3D noise reduction, and superior low-light performance.
An optional upgrade is available for NDI|HX support

The built-in zoom lens has an optical zoom range of 30x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote.
The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream.
Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.

Image Sensor & Lens
Video Sensor: 1/2.8'', CMOS, Effective Pixel: 2.07M
Resolution and Frame Rate: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X
(240x135), 16X (128x72)
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s - 1/10000s
Lens: (30x) f4.42mm ~ 132.6mm, F1.8 ~ F2.8
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation: Supported
Digital Noise Reduction: 2D & 3D Digital Noise Reductions
Horizontal Field of View: (30X) 2.3° ~ 60.7°
Vertical Field of View: (30X) 1.28° ~ 34.1°

Power Options
Power Supply: DC 12V
Input Power: Max. 2A

Pan / Tilt Movement
Pan Movement: ±170°
Pan Speed: 1.7° ~ 100°/s
Tilt Movement: -30° ~ +90°
Tilt Speed: 1.7° ~ 69.9°/s
Image Flip, Mirror and Freeze: Supported
Number of Presets: 255
Preset Accuracy: 0.1°

Physical
Material: Aluminum, Plastic
Color: White
Dimensions:
5.6? W x 6.7? D 6.5? H (7.88? H max height w/ tilt up)
142mm W x 169mm D x 164? H (189mm H max height w/ tilt up)
Weight: 3.2 lbs. (1.445 kg)
Working Environment: Indoor
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

Rear Board Connectors
HD Video Output:
° 1x RJ45: 10/100M Adaptive Ethernet Port
° 1x HDMI: Version 1.3
° 1x 3G-SDI: BNC type, 800mVP-p, 75O, Along to SMPTE 424M
standard
Audio Interface: 1x 3.5mm Line level Input
Communication Interface:
° 1x 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m,
Protocol: VISCA / Pelco-D / Pelco-P
° 1x 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m,
Protocol: VISCA / Pelco-D / Pelco-P
° 1x RS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol:
VISCA/Pelco-D/Pelco-P
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Jack: JEITA type (DC IN 12V)
