Protect your Canon EOS R5 C camera and add mounting options using this Full Camera Cage Bundle Basic Edition from Tilta. Included in the bundle are a full camera cage, a quick release top handle, an EF mount adapter support, an HDMI clamp attachment, and an HDMI to micro-HDMI adapter cable. All these pieces work to improve your camera rig's compatibility and connectivity.

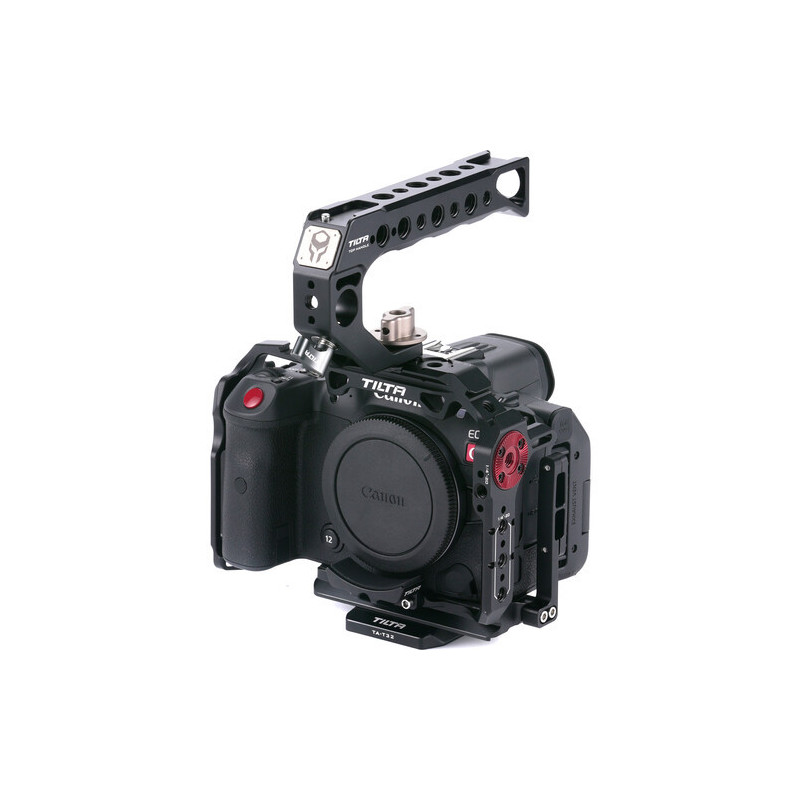

Tilta Full Camera Cage for Canon EOS R5 C
Attach this Tilta Full Camera Cage to your Canon EOS R5 C camera to expand its mounting options and protect the device. Multiple 1/4"-20 threads and three cold shoe mounts allow you to mount articulating arms and wireless microphones on the cage. Several M3 threads, two of which are at the front of the cage, can accept accessories such as the included EF lens mount adapter support.

Additional mounting options include two NATO rails and one ARRI rosette that can incorporate different handles into the configuration. An included HDMI clamp attachment reduces strain on the camera's port and ensures your cable connection remains secure. Integrated into the cage is a magnetic screwdriver to aid in installation. The cage as an aluminum alloy and stainless steel construction creates a durable design.


UPC: 810076270098
Tilta Quick Release Top Handle (Black)
This Tilta Quick Release Top Handle, in black, is a durable, sculpted top handle that attaches securely to a cold shoe and provides accessory mounting points, in addition to a top handle grip for your camera. The quick release handle's features include two cold shoe mounts, one in the front with a spring-loaded safety latch and the second on the back. The handle also features a 15mm rod port and multiple 1/4"-20 and 3/8"-16 threads with and without anti-twist divots.

The aluminum and stainless steel handle attaches to your camera or cage using the included spring-loaded thumbscrew. The 15mm rod port features a locking lever to secure the rod in place. On the front face of the handle, there is a 1/4"-20 threaded mounting hole with anti-twist divots. Multiple 1/4"-20 and 3/8"-16 threaded mounting holes are machined into the top and sides of the handle.


UPC: 631384551422
Tilta EF Mount Adapter Support for Canon EOS R5 C Camera Cage
The Tilta EF Mount Adapter Support attaches directly to your Canon EOS R5 C camera cage to provide additional support to your RF to EF lens mount adapter. Two M3 screws and an Allen key secure the support to your cage. It is then able to provide another point of contact for your adapter and limits any shifting to the image when using follow focus systems.


UPC: 810076270111
Tilta HDMI Clamp Attachment for Canon EOS R5 C Camera Cage
Ensure your micro-HDMI and USB Type-C camera connections remain secure and stable using this Tilta HDMI Clamp Attachment for your Canon EOS R5 C camera cage. Two M3 screws on the attachment secure it to your camera cage and can be tightened with the included Allen key. Dual slots on the attachment can secure one HDMI to micro-HDMI adapter to your camera and a USB Type-C cable simultaneously.


UPC: 810076270104
Tilta HDMI-01-M HDMI to Micro-HDMI Adapter
Simplify camera connectivity with the Tilta HDMI-01-M HDMI to Micro-HDMI Adapter. It plugs into the micro-HDMI port on your camera and provides a standard HDMI port to connect your standard HDMI cable to. Its universal compatibility makes it easy to slip through a camera cage to connect to and detach from your mounted camera.

Support Type: Cage
Type of socket: None
Camera Compatibility: Canon EOS R5 C
Assembly
Battery Plate Type: None
Accessory mounting: Multiple female thread x 1/4 "-20, multiple M3 female thread
Camera mounting: 1/4 "-20 male screw, 3/8" -16 male screw
Tripod Mount: None
Shoe fitting: 3 cold shoes
Rosette: 1 ARRI washer with M6 female thread
Rail mounting: 2 NATO rails
General
Materials: Aluminum
Size: 6.2 x 4.6 x 2.5 "/ 158.6 x 117 x 63.3mm
The weight: 6.4 one time / 182.5g
Packaging information
Package Weight: 0.83lbs
Box Dimensions: 8.4 x 6.9 x 2.8 "
Tilta Quick Release Top Handle Specifications (Black).
Assembly
Attachment Method: Attaches via Rod Doors
Pole Port: 1 x 15mm Pole Port
Accessories assembly
9 x 1/4 "-20 thread
1 x Anti-twist 1/4 "-20 Thread
9 x 3/8 "-16
2 x Anti-twist 3/8 "-16 thread
Shoe mounting: 2 x integrated cold shoe slots
Rosetta: None
Rail mounting: None
General
Materials: Aluminum, Steel
Dimensions: Not specified by the manufacturer
The weight: 6.08 one time / 172g
Physicist
Item Type: Top Handle
Rotation: n
Integrated Controls: None
Packaging information
package weight: 0.5lbs
Box size: 6 x 3.2 x 1.2 inches
EF Mount Tilt Adapter Bracket For Canon EOS R5 C Camera Cage Specifications
General
Compatibility: Canon EOS R5 C Tilta Camera Cage
Physicist
Mounting: 2 M3 screws
Black colour
Construction material: Aluminum alloy, stainless steel
Size: 3 x 2 x 2 "/ 7.6 x 5.1 x 5.1cm
The weight: 4.8 once / 136g
Packaging information
package weight: 0.085lbs
Box size: 2.9 x 2 x 2 "
Tilta HDMI Clamp Attachment For Canon EOS R5 C Camera Cage Specifications
General
Compatibility: Tilta Full Camera Cage for Canon EOS R5 C
Physicist
Mounting: 2 M3 screws
Black colour
Construction material: Aluminum alloy, stainless steel
Size: 3 x 2 x 2 "/ 7.6 x 5.1 x 5.1cm
The weight: 4.8 once / 136g
Packaging information
package weight: 0.085lbs
Box Dimensions: 2.85 x 2.05 x 2.05 "
Tilta HDMI-01-M HDMI To Micro-HDMI Adapter Specifications
General
Connector 1: 1 x HDMI female
Connector 2: 1 x Micro HDMI Male
Conductor material: Copper
Packaging information
package weight: 0.045lbs
Box Dimensions: 6.6 x 4.25 x 0.95 "
