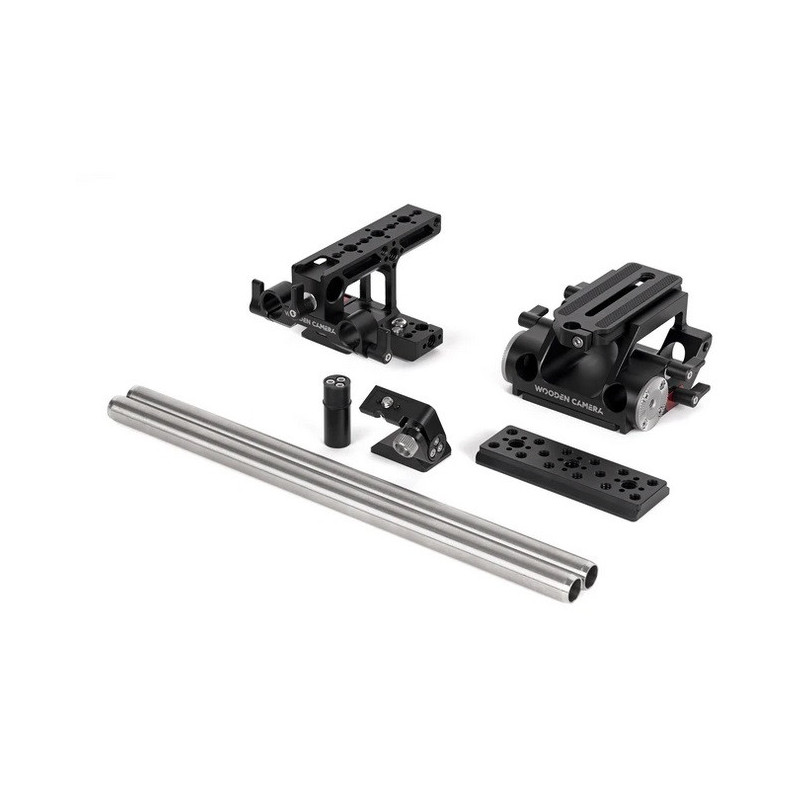

RED KOMODO Accessory Kit (Advanced) is an accessory kit for RED® KOMODO? that includes the LW 15mm Baseplate, Complete Top Mount Kit, and 2x 15mm Rods (12").

The LW 15mm Baseplate (RED KOMODO) provides 15mm lightweight rod openings at the correct distance to the center of the lens. ARRI standard, M6 rosettes are on both sides along with 1/4-20 threaded holes. 3/8-16 ARRI accessory mount also available on camera right side.

Baseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED KOMODO).

Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the included Quick Dovetail. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio).

The Complete Top Mount Kit (RED KOMODO) features a Top Mount that attaches to the camera body using two captive 1/4-20 screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories.

Included Top Handle slides into ARCA slot and leaves camera control screen easily accessible. Shoe mount on top can hold on-camera lights and microphones and side 15mm opening can hold included monitor arm or UVF Mount V2. 1/4-20 and 3/8-16 ARRI accessory mount in several places and 15mm lightweight rod bracket on front for attaching lens motors and more.

Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors. Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle.

Top Plate slides into ARCA slot to provide rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards to allow camera control screen access. Great for attaching to gimbal and drone systems or for using legacy Wooden Camera products.

Weight: 1038 g (2.29 lbs)
Dimensions: 304.8 x 158.75 x 63.5 mm (12 x 6.25 x 2.5 in)
