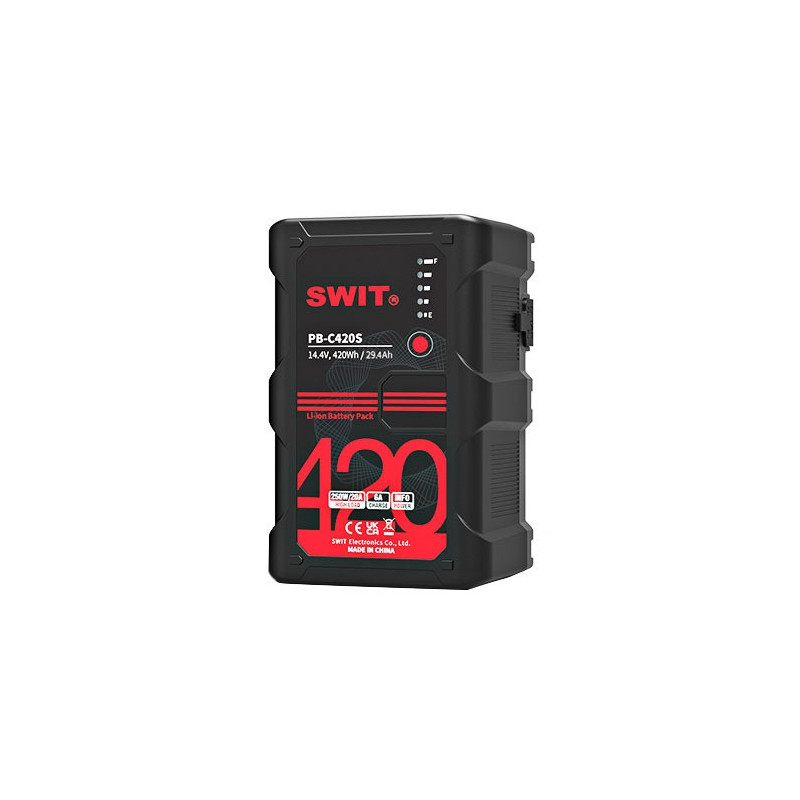

V-mount battery 14.4V, 420Wh 2x D-tap

PB-C420S reaches the world's largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

14.4V, 420Wh, 2x D-tap
PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.4Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

250W Constant High Load
PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

100W 6A Fast Charging
PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Reliable SWIT Quality
The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

° 14.4V, 420Wh/29.4Ah large capacity
° 250W/20A constant load, 305W peak load
° 100W/6A fast charging support
° 2x D-tap power sockets, 150W load
° 5-LED digital power indicators
° SONY/RED viewfinder power info display
° Multiple circuit protections

Nominal Voltage: 14.4V
Capacity: 420Wh/29.4Ah
Power Load: 250W / 20A constant, 305W peak
Charging: DC 16.8V, 6A
D-tap: 2x D-tap 150W/10A in total
Mount Type: V-mount
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: Approx 2.07kg
Dimensions: 155×101×80mm
